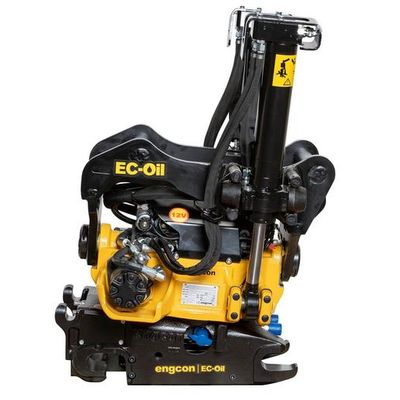

Engcon - Model EC209 -Tiltrotator
A compact, powerful tiltrotator with low weight for excavators up to 9 tons. If the EC209 is selected with engcon’s standard quick hitch S45 and the proportional control system DC2, EC-Oil is offered an automatic quick hitch system as a standard. This means that the tiltrotator and hydraulic tools can be connected & disconnected without the operator needing to leave the cab. Comes supplied with hose, quick couplings and electrical installation equipment for one machine.
Quick hitch: Standard –S45. For other purposes, we can supply most types of hitches available on the market.
Control system: Standard – DC2. proportional control system for infinitely variable control with remote support capability, track/wheel steering and boom slew. For other purposes, we can deliver custom control systems.
Electrical system: Can be adapted for 12 or 24 volt electrical systems.
Accessory: GRD detachable gripper cassette, SWD detachable rotating brush.
The illustration shows a typical configuration. Technical data may vary. We reserve the right to make changes without prior notice.
- The EC-Oil automatic quick hitch system connects the tiltrotator & hydraulic tools without the operator needing to leave the cab.
- Q-Safe quick hitch for high safety
- Comes ready for detachable gripper GRD (S45)
- Comes ready for rotating brush SWD (S45)
- Comes ready for the QSC locking system to avoid wrongly connected or dropped buckets
- Comes ready for a rotation sensor (ePS) for connection to the excavator guidance system
- Central lubrication (a single grease point for the entire tiltrotator; can also be connected to the excavator’s central lubrication system)
- Load-holding valves on tilt cylinders for high safety
- Hardened piston rods
- Up to ± 45-degree tilt angle for best access
- Rotation ∞
- Width A [mm]: 277
- Width B [mm]: 250
- Width C [mm]: 273
- Total length D [mm]: 561
- Build height E [mm]: 425
- Tilt [°]: 2x45
- Weight [kg]: 287
- Max bucket width recommended by engcon [mm]: 1,300
- Rec hydraulic flow DC2/SS10 [l/min]: 60
- Rec hydraulic flow SS9 tilt/rotation [l/min]: 35/40
- Max hydraulic pressure [MPa]: 22
- Max breakout torque [kNm]: 74
- Standard mounting: S45
- Base machine weight [t]: 6-9
