AmeriMex - Model Revolution Series -Top Drive Motor
Industrial Service Solutions greatly improved the traditional top-drive motor design with the following modifications:
Most popular related searches
- Form wound 5KV stator windings to control the voltage spikes from long-lead cables. Traditional top drive motors have a random wound stator susceptible to spikes and failure.
- Copper-bar rotor construction vs. die-cast aluminum rotor.
- Heavy-duty snap rings to keep the rotor from dropping on brake pads.
- Heavy-duty bearings for mechanical strength.
- Heat sink formed in stator for better heat dissipation.
- Optional flying leads or terminal block configuration.
- Eliminator blower options.
- Heavy-duty end rings for high-current carrying capacity.
- 5KV lead cable.
ISS addressed historic weak points of traditional top-drive motor designs to develop superior motors.

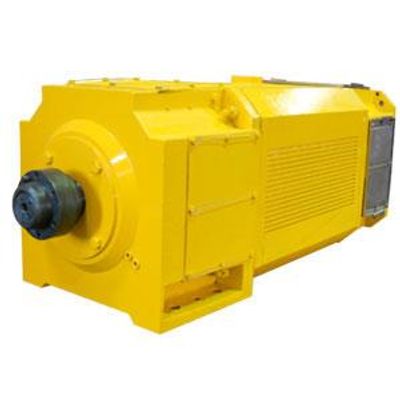

400hp Top Drive Motor
- Standard Features:
- 400 hp
- 1155 rpm
- 575 vac
- 3 phase
- Double-tapered shaft
- Vertical mount
- Amps: 366
- AMERIMEX – REVOLUTION SERIES
- Steel housings
- Upgraded heavy load bearing arrangement
- Steel retaining spring and keeper
- Safety wired
- VPI Class-H insulation
- With covers
- With brake hub
- Enclosure – DPFV
- ATEX certification
- ABS certification
- CSA certification
- Eliminator style blower
