Ozmak Muh. Mim. San. Tic. Ltd. Sti.

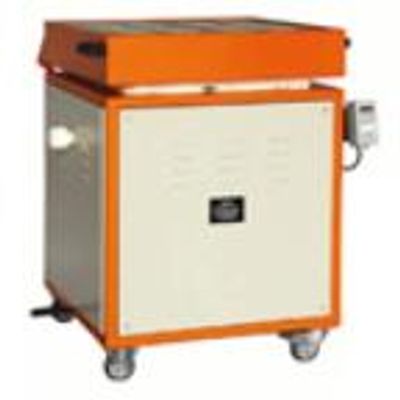

Vesta - Model CEK/HTL - Top Loading Kilns
Operating Temperature : 1100°C / 1280°C. Temperature Control : With any programmer having HAN7Da multipolar socket. Switching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional). Solid State Relay (optional).
Most popular related searches
solid state relay
refractory brick
thermal insulation
wall heating
electrical heating
kiln operation
kiln operator
electrical heat
insulating brick
TEMPERATURE PROGRAMMERS
Compact plug-in Temperature Programming Devices of either BENTRUP or PIXSYS can be supplied.
KILN FURNITURE
Kiln furniture set can be supplied as an optional extra.
- Solid State Relay (optional)
- Thermocouple : Type K (NiCr-Ni) in 1100°C / Type S (PtRh-Pt) in 1280°C
- Thermal Insulation : Light refractory bricks
- Heating Surface : Side walls
- Heating Elements : Spiral wound elements to be recessed into slots that are cut into the brick wall
- Cooling : Natural cooling by removing vent cooling plugs
- Lid Opening : Manual
- Safety : A switch de-energizes heating elements when the lid is open
- Body Construction : Welded steel structure
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) Other colors on request.
- Connection : Single Phase + Neutral + Earth
- All the models are fitted with CE Plug and cable.
- Castor wheels at four corners.
