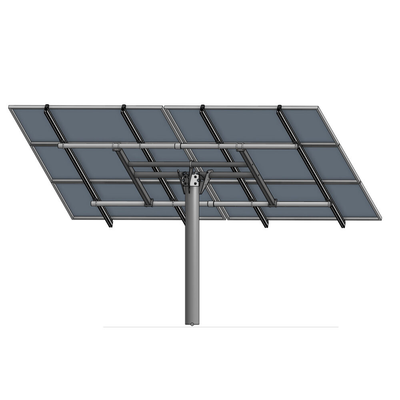

Tamarack - Top of Pole Wall Mount System for Landscape Orientation
Six options to fit your Single Pole Top mount needs. Built from Heavy-Duty Steel structures, our 3.1 aluminum module mounting rails, and utilizing our trendsetting patented 5050 Clamp. Clamps fit module frames 30mm to 40mm deep. Taller frame option available using our 5050+ Clamp, for modules 35mm to 46mm deep frames.
The two and four module options accommodate module widths of up to 45.5 inches
- Two module version is engineered for a total array size of up to 50 sq. feet.
- Four module versions are engineered for a total array size of up to 100 sq. feet.
The three and six module options accommodate module widths of up to 43 inches.
- Three module version is engineered for a total array size of up to 75 sq. feet.
- Six module versions are engineered for a total array size of up to 149 sq. feet.
Vertical pipe required: 4-inch or 6-inch schedule-40 or schedule-80
Size and diameter of pipe depends on:
- TTP-A model
- Tilt angle of the array
- Wind and snow load requirements
Tilt angle adjustable from 10° to 60°.
Easy installation and infinite options with Tamarack`s full line of vertical-mount solar panel hardware
- Securely mount to a pole or wall
- Mount from 1 to 6 solar modules on a single pole
- Accommodate modules from 10 watts to 400+ watts (depending on module size/total square footage)
- Adjustable tilt angle allows for seasonal change to minimize snow loading and maximize energy production
Tamarack Side of Pole mounts are the often-imitated, never-duplicated industry standard. For over 25 years we have made, and continually improved upon, these oh-so-helpful and easy-to-install mounts.
Mount: Wall or Side of PoleThese versatile mounts can be installed on a pole or flat surface. They work great for automatic gates, on the sides of shipping containers or buildings, on a pole as a trickle charge to a battery box, in that spot where you need temporary power to run a security camera or light—most anywhere you need a smaller power source.
Single arm and Side of Pole mounts are made from heavy-duty corrosion-resistant 5000 and 6000 series aluminum.
Mount: Top of PoleTamarack Top of Pole mounts provide a mounting solution for up to 6 large modules. In the world of pole mounts these beauties are the easy to install solution for your off-grid and grid-tied needs. Our newly worked design has simplified installation even more while still providing the stability we are know for.
Top of Pole mounts come in a variety of options including high wind and snow load varieties. Your cabin deep in the mountains you can’t even access in winter due to snow? We got you. Your grid-tied sunny garden array? Sure thing!
Top of Pole mounts are steel structures, some of them using our innovative rail design.
Ironclad Warranty10-year warranty on Side of Pole and Top of Pole structures.
-
Pole Size: 4" or 6" schedule-40 6.625" OD or 4.5" OD
-
Max Module Area (ft²): 149 on 1 pole
-
State of CA Stamped Engineering
-
SKU: TTP-A
Single Pole Design
Uses 4-inch or 6-inch schedule-40 or schedule-80 pipe
Options, Options, Options
Mount from 2-6 modules per pole with a tilt angle of 10° to 60°
Extremely Robust
Outstanding snow and windspeed ratings
Easy To Install
No complex winches or guywires
Easy to Configure
Patented module clamp design eliminates need for sizing based on frame hole locations
Visually Appealing
Single pole mounts, they are just darn good looking!
