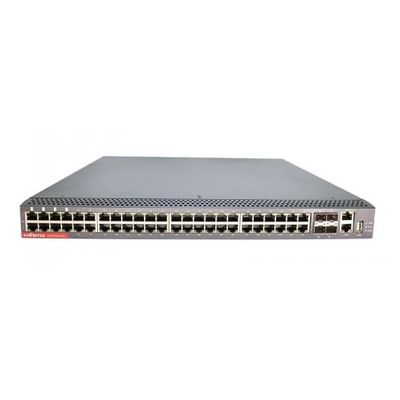

Toputel - Model TOP-S5350-54TX -Managed Layer 3 Network Switch

It is mainly aimed at the aggregation of campus networks/enterprise networks, high-quality Gigabit desktop access, server access in data centers, 802.11n Wlan wireless deployment access and other scenarios, providing stable, reliable and secure high-performance IPv4/IPv6 L2/L3 layer switching services.

• 48*10/100/1000M RJ45,
• 4* 10GE SFP+ optical,
• 1*USB, 1* Micro USB , 1*Console,
• 1*RJ45 network management port,
• supports AC/DC redundant dual power supplies.
• (AC): 100V ~ 240V, 50Hz ~ 60Hz
• (DC): -40~-57V
• Full load power consumption ≤73W

1. High-density Gigabit access, 10G aggregation port design
2. Unique PDI function
3. Comprehensive and rich security control strategy
4. Fully support IPv4/IPv6 Layer 2 and 3 protocols
5. Modular power supply design, supporting AC and DC redundant dual power supplies

Gigabit Layer 3 access/aggregation in building LAN
In the LAN of an enterprise building, use TOP-S3230-28TX as the corridor access switch and TOP-S5350-54TX as the aggregation switch to form a high-speed network;
