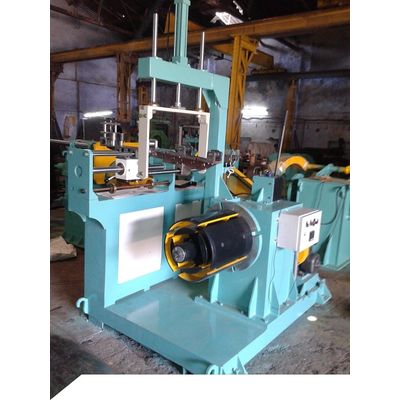

Valgo - Model Vmcrgo-550 - Transformer Core Cutting Machine
We at valgo machinery manufacturing designed CRGO core cutting line (transformer core cutting line); The core cutting line model vmcrgo-550 is designed and built for the production of grain – oriented lamination suitable core with step lap system and can cover up to a max sheet width of 500mm. Consistently with the transformers design this machine is particularly suitable for the productions of cores for transformers power rating and raging.
- Uncoiler
- Feeder
- Three roll leveler
- Guide unit
- V-notch
- Punching unit
- Shearing unit
- Convyor unit
- Stacker unit
- All pneumatic system
- All electric system with plc based and computer controller
Our machine is available in manual or automatic precision stacker or with innovativative robotic stacking system allowing to cut and assembly in same production phase cover (20cores/ day) the innovative lamination fast replacement system combines different lamination width with high productivity.
Model: Vmcrgo-550
Processing steel thickness: 0.5mm
Processing coil width: 500mm
Processing material: Silicon steel
Line speed: 100~200m/min
Cutting accuracy: ±0.1
