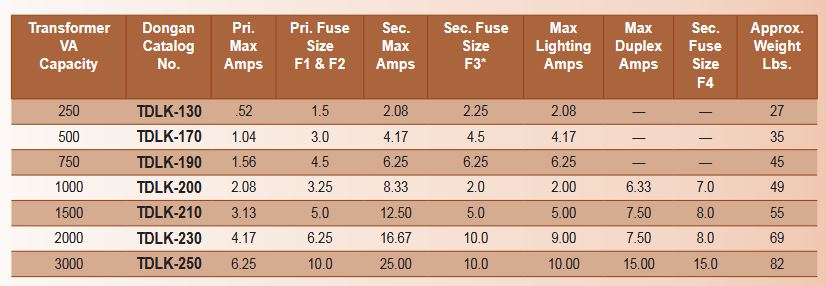

Dongan - Model TDLK Series -Transformer Lighting Disconnect
Dongan Electric Manufacturing Company is pleased to display its new line of Transformer Lighting Disconnects. The products in this catalog represent the most advanced series of disconnects available in the market today Most important, these products have the approvals and certifications needed to compete and ship virtually worldwide.
Most popular related searches
- NEMA 1 / IP 23 enclosure.
- Primary Voltage: 480 VAC.
- Secondary Voltage: 120 VAC.
- 50 / 60 Hz.
- 200K AIC RATED
- One side of secondary grounded.
- Transformer is copper wound with electrostatic shield (earth metal screen).
- Finger-safe terminals.
- All overcurrent protection provided: Primary - Class CC
- Secondary - Supplementary fuses (13/32” x 1 Z\x”).
- Complies with automotive indus- try specifications.
- 3 position, padlockable cam switch.
- Duplex receptacle provided on 1000 VA through 3000 VA, optional on 250 VA - 750 VA.
- Dedicated physical earthterminal.
- Bonded door ground stud. Options: Green, “ON” pilot light available as additional cost option. Other voltage combinations available.
