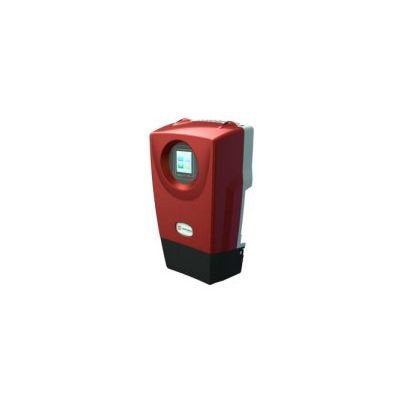

SunwayModel M XS -Transformerless Single-Phase Solar Inverter

SHARE

The Sunway M XS is the ideal solution for PV plants ranging from 2 to 9 kWp. Light-weighted thanks to transformerless architecture, which results in best energy efficiency. Very simple to install, the Sunway M XS features an easy to use interface. The Sunway M XS is technologically advanced thanks to the colour touchscreen display, the integrated datalogger and wireless connectivity. The user can dialogue with the inverter by way of special applets downloadable from you mobile phone. Its design is unique and stylish.

Most popular related searches
  • Touchscreen display and integrated Datalogger
  • Integrated web server
  • Compliant with CEI 0-21, VDE-A-RN 4105, VDE 0126-1-1
  • Low energy consumption (conforms to EU requirements for standby consumption)
  • Control and minimization of the DC current component introduced into the network
  • Power equalization function on CAN Bus for multi Inverter connection (SUNWAYTM M XS 4600, M XS 5000, M XS 6000 and M XS 7500 models only)
  • Insulation control of the photovoltaic field
  • Incorporated DC switch (optional)
  • MPPT Voltage range: 125÷480 Vdc | 330÷740 Vdc
  • Max. DC voltage: 580 Vdc | 845 Vdc
  • Max. number of input strings: 4 | 4
  • Max. number MPP independent channels 1 | 1
  • Grid voltage: 230 Vac +/- 15% | 230 Vac +/- 15%
  • Grid frequency: 50 Hz | 50 Hz
  • Total grid current distortion: ≤3% | ≤3%
  • Degree of protection: IP65 | IP65
  • Temperature range: -25°C ÷ +45°C | -25°C ÷ +45°C
  • Relative humidity: 95% max. | 95% max.
  • Losses when stopped:
  • Night losses:
