Halcor

TALOSModel Solar Plus -Tubes

FromHalcor
SHARE

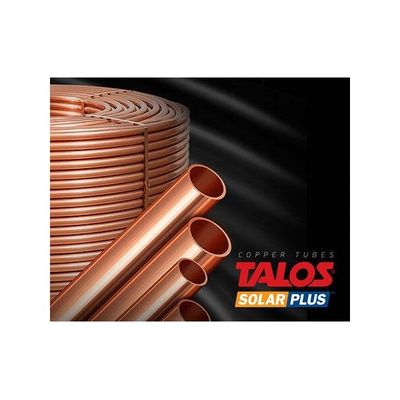

TALOS SOLAR PLUS™ tubes are specially engineered for solar panel applications. The extra clean outer surface of TALOS SOLAR PLUS™ tubes enables the optimization of the welding process between copper or aluminium absorber sheets when using ultrasonic or laser joining technologies. Increased welding speeds and minimization of pre-cleaning operation lead to savings of time and money in the manufacturing of solar absorber panels. The high thermal conductivity of copper ensures an improved thermal efficiency of the solar absorber panel.

Most popular related searches
  • Hard (R360 and R290) and Soft (R220) in level wound coils (LWC).
  • Hard (R360 and R290), Half-Hard (R250) and Soft (R220) in straight lengths.

Copper phosphorus deoxidized (DHP-Cu) with min. copper content 99,90% and P=0,015%-0,040%.

According to EN 12449 or ASTM B75.

Upon request length tolerances can be set at ±0,50mm.



  • Higher welding speeds to copper and aluminium absorber sheets
  • Improved thermal efficiency due to high conductivity of copper and extra cleanness
  • Increased production efficiency due to coil weights up to 580kg
