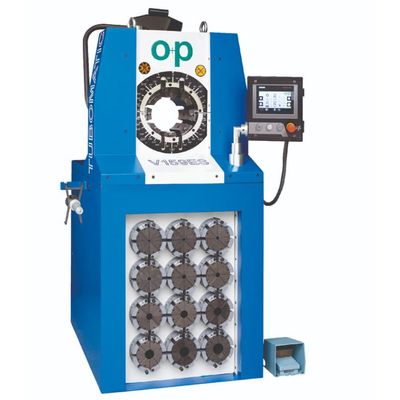

Hydrapac - Model V150 ES - Tubomatic Volume Crimping Machine

• ES4 Siemens PLC control with 7`` color touch-screen display;
• self lubricating moving components;
• silent pump;
• particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
• back limit switch;
• protractor for orientation fittings;
• hydraulic power pack included

CRIMPING FORCE: 300 TON (551 US TONS)
6 SPIRALS 2 PIECES: 2``1/2
INDUSTRIAL HOSE: 4``
MAX. Diam.: 118 mm (4.645``)
CRIMPING / HOUR: 1365
CLOSING SPEED: 12mm/sec (0.472``/sec)
CRIMPING SPEED: 2.2 mm/sec (0.086``/sec)
OPENING SPEED: 35 mm/sec (1.377``/sec)
DIE OPENING: Ø + 70 mm (Ø + 2.756``)
STANDARD VOLTAGE: 375V-420V 50HZ 3PH
MOTOR POWER: 5,5 Kw (7.5 Hp) A=10,74
DIMENSIONS L x W x H: 920x730x1605 mm (36.220``x28.740``x63.188``)
WEIGHT WITHOUT OIL: 1228 KG (2707 Lbs)
OIL: 220 lt
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE: incl.
HYDRAULIC POWER PACK DIMENSIONS L x W x H: 865x735x1160 mm (34.055``x28.937``x45.669``)
HYDRAULIC POWER PACK WEIGHT: 293 KG (646 Lbs)
BACK LIMIT SWITCH: incl.
ELECTRONIC CONTROL WITH TOUCH SCREEN: incl.
PROTRACTOR FOR ORIENTATION FITTINGS: incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE: incl.
PRESSURE CONTROL SYSTEM: OPTIONAL
SPEED CONTROL SYSTEM: OPTIONAL
BARCODE: OPTIONAL
WEBCAM: OPTIONAL
FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH: OPTIONAL
CONNECTION FROM ES4 TO PC: OPTIONAL
MARKING DIES: OPTIONAL
SPECIAL DIES: OPTIONAL
SPECIAL VOLTAGE: OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM: OPTIONAL
QUALITY CHECK: OPTIONAL
DISPENSER + QUICK CHANGE: OPTIONAL
MULTISTEP: OPTIONAL
ELECTRIC PEDAL: OPTIONAL
MIRROR: incl.
TOOL-HOLDER SUPPORT: OPTIONAL
