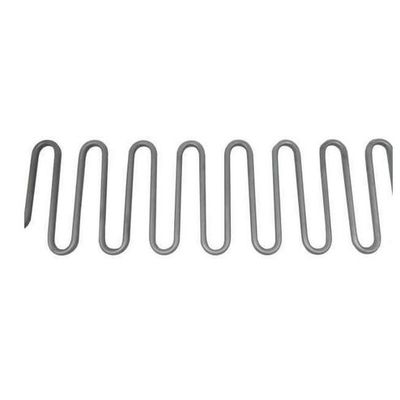

Isoheat - Model MIL-HC-SS/R -Tubular Heating Elements
Tubular heating elements up to 850°C. High-performance tubular heating element with metal casing made of chrome-nickel steel (1.4828) or alloy 825 (2.4858). Heavy-duty heating cable for transferring high heat output. Various connection technologies possible.Length, rated voltage and power can be customised.
Most popular related searches
Connection techniques
- Connection bolt M2,5 (Ø6,5mm) / M4 (Ø8,5mm)
- Flat plug 6,3mm
- Glass fibre insulated nickel wires
- Laser-welded cold ends with pre-assembled M 20 x 1,5 screw connection
- Nominal voltage: Up to 480 V AC
- Rated power: Up to max. 800 W/m
- Dimensions: Ø 6,5 or Ø 8,5 mm
- Length: Up to 6,0 m
- Protection class: I
- Protection type: depending on the connection type
- max. temperature: 850°C
- Cold ends: Various options possible
