Aristoncavi URSUS - Model MT - Tunnel V Plus Medium Voltage Cable
The URSUS MT Tunnel V Plus is a flexible medium voltage (MV) cable specifically designed to supply energy to MV equipment used in tunneling and underground mining operations. Conforming to the VDE 0250 Part 605 standard, this cable includes multiple components such as phase conductors, protective earth conductors, control conductors, and a monitoring conductor, all enclosed within multiple layers like the first and second inner sheaths, armor, and outer sheath. This design ensures reliable performance in harsh underground environments. The cable's construction provides enhanced flexibility, durability, and protection, making it a suitable choice for challenging conditions faced in mining and tunneling operations where dependable power supply is critical for operational success.

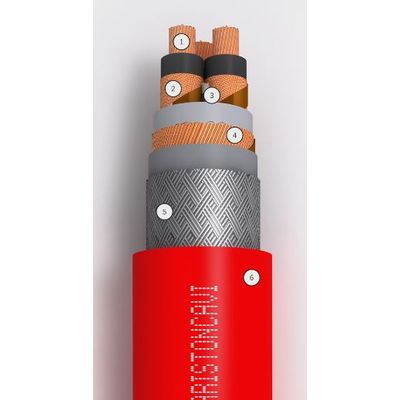

- PHASE CONDUCTORS
MATERIAL: bare copper
CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
INSULATION MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
SEMICONDUCTIVE LAYERS: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation - PROTECTIVE EARTH CONDUCTORS
MATERIAL: bare copper
CONSTRUCTION: individual copper wire screen - CONTROL CONDUCTORS
MATERIAL: tinned copper
CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
INSULATION MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20 - FIRST INNER SHEATH
MATERIAL: PVC, DMV6 (YM5) quality
- MINITORING CONDUCTOR
MATERIAL: bare copper
CONSTRUCTION: copper wire screen over the first inner sheath - SECOND INNER SHEATH
MATERIAL: PVC, DMV6 (YM5) quality
- ARMOR
MATERIAL: steel wire
CONSTRUCTION: steel wire braid over the second inner sheath - OUTER SHEATH
MATERIAL: PVC, DMV6 (YM5) quality
COLOUR: red
Flexible cable for energy supply of MV equipment, in tunnelling and underground mining applications, according to VDE 0250 Part 605 Standard, as far as applicable.
