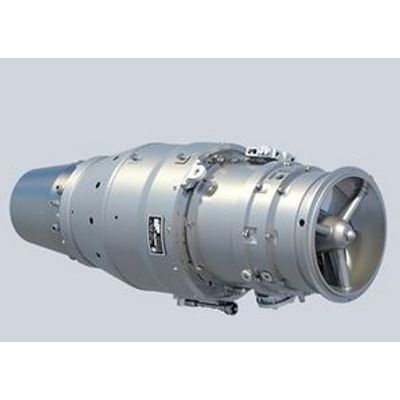

PBS - Model TJ200 -Turbine Engine
The PBS TJ200 is primarily designed as a propulsion unit for modern UAV and UCAV systems, and defense applications. It features a clean-slate new design with compact installation dimensions and a reduced frontal diameter. Lubricated by fuel, it is equipped with a BLDC starter-generator, electric metering fuel pump, and FADEC electronic control system.

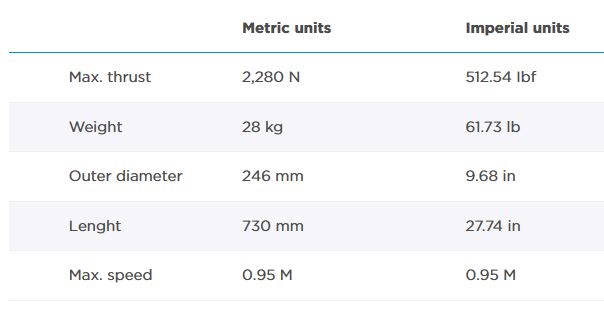

The objective for this engine, with a diameter of 246 mm, is to achieve a maximum thrust of up to 2,280 N. This represents a reduction in diameter by more than 10% while simultaneously increasing thrust by more than 50% compared to the current most powerful PBS TJ150 engine.
The main advantage of the engine is its compact size, excellent thrust-to-diameter ratio, and low fuel consumption in its thrust category.
