Beirens - Turbine Silencers
From Acoustic Treatment

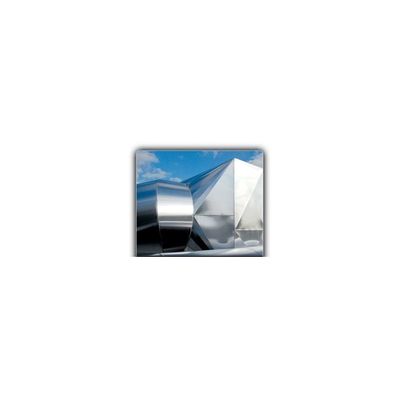

This type of silencer consists of a series of parallel baffles placed inside the smoke flue (exhaust or chimney) creating large contact areas that efficiently absorb low, medium and high frequency noises. The noise generated by turbine exhausts is significant (>130 dB) and therefore requires high-performance acoustic treatment. Each baffle is optimised to achieve the highest level of performance, while reducing pressure losses as much as possible. BEIRENS has developed a specific baffle design for this application, made up of independent absorbent boxes mounted on slides that are free to move and expand in relation to each other. Thus, each one is subject to lower mechanical stress, which contributes to avoid cracking, increasing both acoustic and structural performance.
-
Most popular related searches
Product Details
- Excellent acoustic performance at medium and high frequencies
- Good resistance to high temperatures
- Reduced pressure losses
- Easy to handle and maintain
Standard Model
- Materials: Stainless steel 1.4307 (304L)
- Baffle made of high density mineral wool (60 to 100 kg/m3), mechanically protected by perforated steel plates, stainless steel mesh, fibreglass cover and fibreglass batting
- Insulation of the box with 150 mm mineral wool
- Finish: primary aluminium jacket (Isoxal)
Options
- Materials: Stainless steel 1.4401 (316L) or other grades according to needs
- Insulation of box: 200 mm mineral wool depending on operating conditions
- Finish: aluminium painted jacket or stainless steel mirror-finish
- Connecting flange
- Flexible expansion joint
- Supporting: metallic frame, fixed point, sliding point, spring bracket, cradle, anchor foot and guy wires
