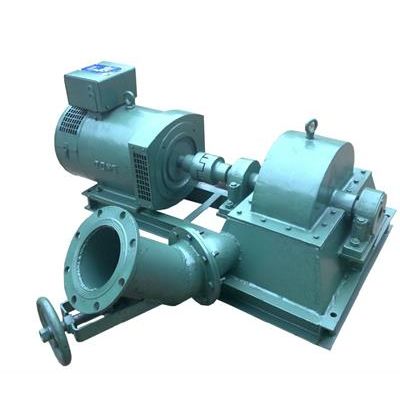

Electway - Model XJ-WJ Series -Turgo Impulse Turbine (1-100kW)

It is widely used in hydro power stations with the head of 3--180 meters. With inclined jet turbine, the water flow output from nozzle flows along a certain angle of plane of rotation of the running wheel instead of flowing along the tangent of the turning wheel, and the water flow goes inside the blades from one side and goes out form blades from another side. The inclined jet turbine adopts single curved surface blades, the water flow goes through the blades will splash, therefore the efficiency is low. The inclined jet turbine is applicable for the small-sized and medium-sized power station with the hydraulic head range of 20-400m.
