These cables typically feature stranded tinned copper conductors with XLPE (cross-linked polyethylene) insulation, rated for high voltage (DC 1.5KV) and temperature (-40ºC to +90ºC), ensuring durability against UV radiation and harsh outdoor conditions. They are used for interconnecting solar panels and inverters with a focus on stable electrical performance, weather resistance, and long service life.

Most popular related searches

3 Core FLAT 4mm²

  1. Name:3 Core FLAT 4mm²
  2. Model Number:2PfG PV1-F
  3. Specification:3×4mm2
  4. Rating:Voltage:0.6/1kV(AC) 1.8kV(DC)
  5. Temperature:-10℃~105℃
  6. Standard:IEC 60228

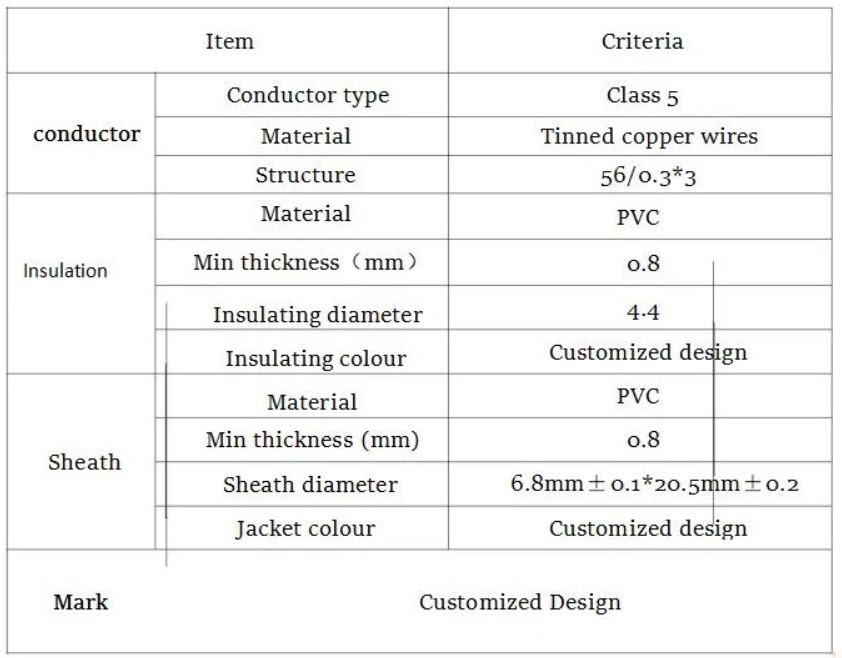

  7. 3C Cable Chart below
