RESOL FlowSol - Model B/B HE -Twin-Line Pump Station
FromResol GmbH

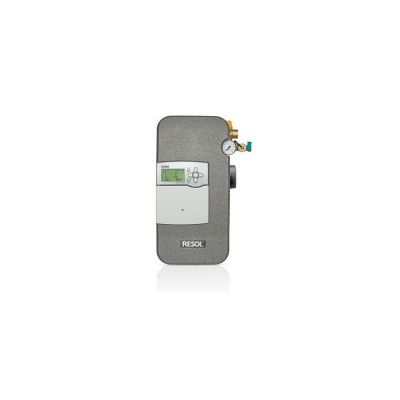

The FlowSol® B is a pre-assembled twin-line pump station and contains all the vital hydraulic components operating a solar thermal system. Like all RESOL pump stations, it is particularly easy to install.
Most popular related searches
- Pre-assembled twin-line pump station
- Integrated controller of choice from the DeltaSol® BX, DeltaSol® BS or DeltaSol® C series
- Design insulation casing
- Innovative hinged controller panel for quick and easy access to the hydraulic components
- Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
- Fill and drain valves
- Wall mounting bracket with mounting material
- Energy-saving high-efficiency pump (FlowSol® B HE only)
- Circulation pump: Wilo ST 15/6 eco, 15/7 ECO or Wilo Stratos TEC ST 15/1-6 (FlowSol® B HE)
- Safety valve: 6 bar
- Pressure gauge: 0 ... 10 bar
- Flowmeter: 1 ... 13 l/min
- Non-return valves: opening pressure 20 mbar, openable
- Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing
- Outlet safety valve: 3/4" IT
- Connections to the solar pipes: 3/4" IT
- Maximum temperature flow/return: 120 °C/95 °C
- Maximum pressure: 6 bar
- Medium: water with max. 50 % glycol
- Dimensions:
- approx. 481 × 320 × 190 mm (with insulation)
- distance centres: 100 mm
- distance centre/wall: 67 mm
- Material: fittings: brass
- sealings: EPDM/AFM 34
- insulation: EPP foam
- Flow rate: 1 ... 10 l/min
- Non-return valve: 200 mm head, openable
