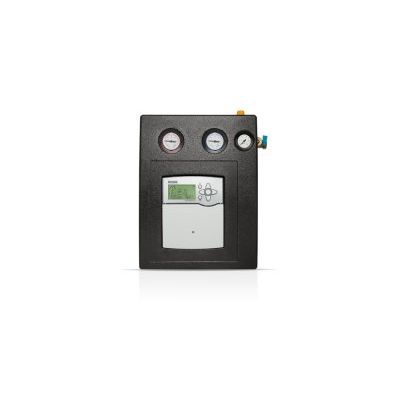

RESOL FlowSol - Model XL -Twin-line Pump Station
FromResol GmbH
The FlowSol XL is a pre-assembled twin-line pump station especially developed for systems with high flow rates. Equipment and nominal width are designed to meet the demands of large collector fields. The pump station contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install.
Most popular related searches
- Pre-assembled twin-line pump station
- Integrated DeltaSol BX or DeltaSol BX Plus controller
- Energy-saving high-efficiency pump
- Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
- Ball valves with non-return valves in flow and return
- Flowmeter
- Air separator with manual air vent for the solar thermal system
- Fill and drain valves
- Circulation pump: Wilo Stratos PARA 15/1-11,5
- Safety valve: 6 bar
- Pressure gauge: 0 ... 10 bar
- Flowmeter: 5 ... 35 l/min
- Ball valves in flow and return with non-return valves and thermometer handles:
- Non-return valves: Opening pressure 20 mbar, openable
- Thermometer: 0 ... 160 °C
- Connection to diaphragm-type expansion vessel: 1`` ET, flat sealing
- Outlet safety valve: 1" IT
- Connections to the solar pipes: 1" IT
- Maximum temperature flow/return: 120 °C / 95 °C
- Maximum pressure: 6 bar
- Medium: water with max. 50 % glycol
- Dimensions:
- approx. 470 x 380 x 220 mm (with insulation)
- Distance centres: 125 mm
- Distance centre / wall: 73 mm
- Material:
- fittings: brass
- seals: AFM 34
- O-ring: FKM
- insulation: EPP foam
