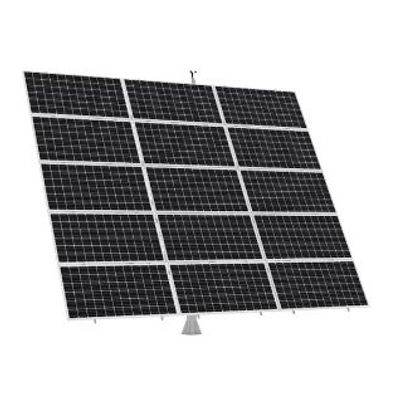

HUAYUE Tracker - Model HYS-15PV-144-LSD - Two Axis Solar Tracker Kit
SMART TRACKING: The dual axis solar tracker can keep the solar panel in the best direction and maximize the use of the power of the photovoltaic panel.
Compared with traditional rooftop power generation systems, it can greatly improve conversion efficiency, utilization rate, etc., and generate 50% more electricity than traditional rooftop systems, because it can make the solar panels perpendicular to the sun at an angle of 90° from morning to night, not limited by the change of the sunlight reception angle, and always maintain a stable power supply.
The construction is simple, and a steel structure base can be used to avoid complex concrete construction and be more environmentally friendly. At the same time, the construction location can be changed at will.
The solar energy system integrated with the energy storage inverter and energy storage lithium battery can directly store the excess energy generated in the built-in lithium battery, and use the battery to power household appliances, increasing the average utilization rate of the traditional solar power generation system from 20% to 60%, which can not only cover the daytime electricity consumption, but also effectively meet the high-power electricity consumption at night, and fully meet the power supply needs of households.
Grid Area: ≈ 40 ㎡
Size of Solar Panel: 2279mmx 1134mm
Main Material: Q235B /Q355B
Fastener Material: 304 (A2-70) Flange Bolt + Flange Nut
Azimuth Tracking Range (°): -135°~+135°(Any Range Within -175°~+175°)
Altitude Tracking Range (°): 0~60°/(0~72°Customizable)
Snow Load: 2.0 KN/ ㎡
Protection Wind Speed: Have (17 m/s)
Survival Wind Speed: 37~60 m/s (Customizable)
System Upgrade: Remote One-Click Upgrade + Local Upgrade
Rated Operational Voltage: DC24
Rated Operational Current: 10A (Single Way)
Power Supply Mode: AC100~305V power supply, String DC250~1500V power supply
Control Algorithm: Astronomical Algorithm +Position Sensor Closed Loop Control
Protection Level: IP65
Local Communication Mode: WIFI
Remote Communication Mode: WIFI or 4G (Optional)
Night Return Mode: Have
Backtracking Algorithm: Have (Al algorithm can be upgraded)
SCADA: Have (Functions and interface can be customized)
Automatic Snow Removal: Optional
Rotation Position Protection Mode: Sensor Protection + Software Protection
Tracking Cycle: Can be Set Up
TCU/STCU Visual Operation: Have
Operating Temperature(C): General Default Configuration -30℃ ~ +70℃, Special Customized Configuration -50℃ ~ +85℃
