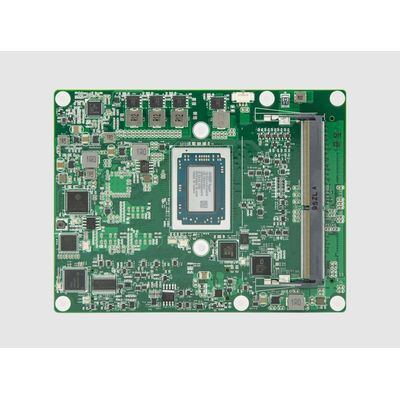

Model EmETXe-a10M3 - Type 6 CPU Module

System

CPU: Soldered onboard AMD Ryzen V1000 V1605B 2.0GHz(Base)/ 3.6GHz (Turbo) or V1756B 3.25GHz(Base)/ 3.6GHz (Turbo) or V1807B 3.35GHz(Base)/ 3.8GHz (Turbo) processor

Memory: 2 x DDR4 ECC SO-DIMM sockets, supporting up to 32GB SDRAM

BIOS: AMI UEFI BIOS

Watchdog Timer: 1~255 levels reset

I/O Interface

USB Port: 12 x USB ports:

- 8 x USB 2.0 ports

- 4 x USB 3.1 ports

Serial Port: 2 x UART ports (RX/ TX only)

Expansion Bus: 8 x PCIe x1 lanes, 1 x GPCIe x8 lanes, LPC, SPI

DIO: 8-bit Digital Input/ Output

Storage: 4 x Serial ATA ports with 600MB/s HDD transfer rate

Ethernet Chipset: 1 x Intel®Ethernet controller i21x series

Audio: HD audio link

TPM: Supports TPM 2.0 SLB9665TT (Optional)

Display

Graphics Chipset: Integrated Vega Core Graphics controller

Graphics Interface: Dual Channels 24-bit LVDS, with resolution up to 1920 x 1200 @60Hz or 1 x DP Max. 3 x DDI ports

OS support

Windows 10 IoT Enterprise 64-bit

Linux: Ubuntu

Mechanical & Environmental

Power Requirement: 8.5V~28V wide range voltage input, +5VSB

Power Consumption: 2.39A @ 12V(V1605B typical)

Operating Temp.: -20 ~ 70ºC

Operating Humidity: 10 ~ 95% @ 70ºC (non-condensing)

Dimension (L x W): 125 x 95 mm (4.9” x 3.7”)

Ordering Information

EmETXe-a10M3-V1605B: AMD Ryzen Embedded V1000 V1605B COM Express® Basic Type 6 CPU Module

EmETXe-a10M3-V1756B: AMD Ryzen Embedded V1000 V1756B COM Express® Basic Type 6 CPU Module

EmETXe-a10M3-V1807B: AMD Ryzen Embedded V1000 V1807B COM Express® Basic Type 6 CPU Module

Optional Accessories

HS-10M3-C1: Heat sink with Fan, PAD (95 x 125 x 51mm)

PBE-1705-F1: COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor

CBK-03-1705-00: Cable kit

1 x SATA cabl, 2 x COM Flat cables
