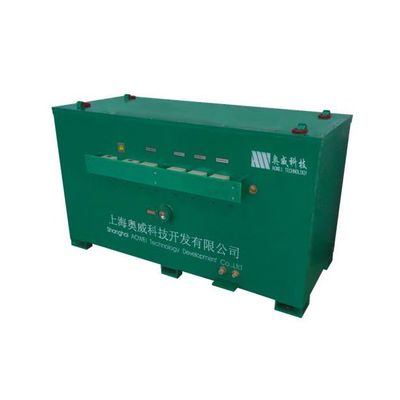

Aowei - Model S585V36-K7 - UC System for City Bus

SHARE

System S585V36-K7 and system S720V40-K7 passed compulsory inspection required by National Ministry directory. System S720V40-K7 is certified by ECE R100 and ECE R10. It designed with multiple protection case and filled with nitrogen. It can be applied to city bus, tunnel locomotive, mining locomotive, port truck, smart power grids, ground energy storage station and other high power and energy requirements.

Most popular related searches
smart power grid
smart grid energy storage
grid energy storage
power grid
energy storage
voltage monitoring
smart grid
smart grid storage
power grid station
smart energy storage
  • System S585V36-K7 and system S720V40-K7 passed compulsory inspection required by National Ministry directory
  • System S720V40-K7 is certified by ECE R100 and ECE R10
  • Working temperature window -25~55?
  • Applications:City bus,Tunnel locomotive,Mining locomotive,Port truck
  • Characteristics:Designed with multiple protection case filled with nitrogen
  • City bus
  • Tunnel locomotive
  • Mining locomotive
  • Port truck
  • Marine power supply
  • Emergency UPS
  • Smart power grids
  • Ground energy storage station

  • Part Number: S585V36-K7
  • Nominal Capacitance(F): 1111(According to corporate standard), 889(According to QC/T 741-2014)
  • Operating Voltage Window(V): 400~585, 374.4~590.4(According to GB/T 31467.1)
  • Surge Voltage(V): 605
  • Stored Energy(kWh): 32±5%(400~585V), 35±5%(According toGB/T 31467.1)
  • Standard Charge Current(A): 400
  • Standard Discharge Current(A): ≤400
  • Maximum Charge/Discharge Current(<20s)(A): 800
  • Time for Charging(min): 6~8
  • Operating Temperature(oC): -25~+55
  • Storage Temperature(oC): -30~+65
  • Protection Level: IP67
  • Electric Property: Overvoltage, overcurrent, overheat, overload, short circuit, DC leakage protection, etc
  • Capacitor Management System: Automatic balance, voltage monitor, temperature monitor, DC leakage monitor, etc
  • Cooling Mode: Air cooling
  • Communication Interface: CAN
  • Size(mm): 1370×1000×895
  • Weight(kg): 1000
