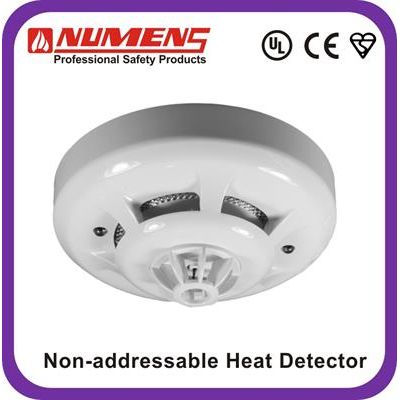

Numens - Model HNC-310-H2 - UL and EN approved non-addressable heat detectors
The HNC-310-H2 non-addressable heat detectors are suitable for connection to 2-wire non-addressable fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept non-addressable type detectors . An electronic thermistor sensor provides sensitive rate-of-rise alarm operation, or fixed-temperature operation when the response threshold value is exceeded. The HNC-310-H2 range of non-addressable detectors provide fire detection and alarm system designers with a Standards-compliant, economical heat detector for property protection applications where smoke or multi-sensor detectors may not suitable due to environmental conditions.· Advanced algorithms provide excellent detection discrimination
· Durable sensor. No adjustment or replacement required
· Surface-mount device (SMD) circuit board designfor stable and reliable operation
· Dual LEDs for 360° visibility
· 2-wire models for DC 12 V and DC 24 V operation
· Connects to zone monitor for use with addressable control and indicating equipment
· Easy installation. No programming required
· Sleek low-profile housing design
· Low maintenance
|
|
HNC-310-H2 |
|
Operating voltage |
DC (10.8 ~ 33) V |
|
Start-up current |
≤ 100 µA |
|
Start-up time |
≤ 30 s |
|
Quiescent current |
40 µA |
|
Sampling time |
(3 ~ 5) s |
|
Alarm response threshold |
59 °C static, and rate-of-rise a |
|
Alarm current (max) |
50 mA |
|
Alarm condition indicator |
Dual red LEDs |
|
Reset voltage |
≤ 1 V |
|
Reset time |
≤ 5 s |
|
Operating temperature |
|
|
Operating humidity |
(0 ~ 95)% RH, non-condensing |
|
Storage temperature |
(-25 ~ +80)°C |
|
Storage humidity |
(0 ~ 98)% RH, non-condensing |
|
Dimensions (excluding contacts) |
Φ 99 mm × 45 mm |
|
Ingress protection rating |
IP-42 |
|
aDetectors are factory-configured for 30 k/min and comply with EN 54-5 class A1 and class A2. |
|
|
|
UL 521 a |
EN 54-5 b |
CE |
|
HNC-310-H2 |
√ |
√ |
√ |
|
HNC-310-HL |
√ |
√ |
√ |
|
HNC-310-R |
— |
— |
√ |
|
HNC-310-A |
— |
— |
√ |
|
a UL 521 Heat detectors for fire protective signaling systems b EN 54-5 Fire detection and fire alarm systems. Heat detectors. Point detectors |
|||
