Parker Balston - Ultra Dry Gas Generator

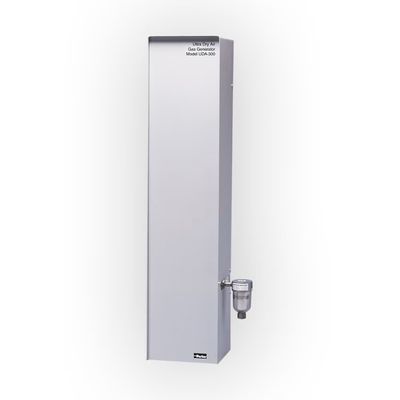

Parker Model UDA-300 Compressed Air Dryer provides ultra-dry, purified compressed air to analytical instruments. Designed for NMR instruments, the Parker compressed air dryer will reduce the dewpoint of compressed air to -100°F (-73°C).
Most popular related searches
- Brand: Balston
- Division: Industrial Gas Filtration and Generation Division
- Industry: Healthcare & Life Sciences
- Application: Analytical Laboratory
- Technology: Filtration
- Product Type: CO2 Free Gas Generator
- Flow Rate: 184 to 340 L/min
- Gas Type Generated: Air
- Inlet Port Size: 1/4 inch
- Outlet Port Size: 1/4 inch
- Port Type: Female NPT
- Electrical Requirements: Yes
- Input Voltage: 120 VAC 60 Hz
- Power Consumption: 10 W
- Ambient Temperature: 40 °C Max., 100 °F Max.
- Inlet Pressure Rating: 60 to 125 psig
- Outlet Pressure Rating: 115 psig Max.
- Specifications Met: CE
- Dew Point: -100 °F
- Compressor Included: No
- Weight: 23 kg, 50.0 lb
- Height: 1040 mm, 41 inch
- Width: 380 mm, 15 inch
- Depth: 200 mm, 8 inch
The Parker Compressed Air Dryer provides ultra-dry, purified compressed air to NMR instrumentation. The model UDA-300 reduces the dewpoint to -100°F (-73°C) without operator attention. This dry air generator is completely automatic, and is virtually maintenance free. Ideal for injecting, spinning, and lifting operations.
Each system is delivered complete, and ready for easy installation. A high efficiency prefiltration system, automatic drains, a 0.01µm final filter, a moisture indicator, and pretested controls are integral to the design of each dryer.
Features/Benefits
Features and Benefits:
- Supplies ultra-dry, purified compressed air to NMR Spectrometers and other analytical instruments
- Ideal gas supply for spindle and automatic sample changer
- Completely eliminates costly, inconvenient nitrogen dewars - never pay for or change out another dewar
- Compact design frees up valuable laboratory floor space
- Completely automatic - plug it in and forget about it
Features and Benefits:
- Supplies ultra-dry, purified compressed air to NMR Spectrometers and other analytical instruments
- Ideal gas supply for spindle and automatic sample changer
- Completely eliminates costly, inconvenient nitrogen dewars - never pay for or change out another dewar
- Compact design frees up valuable laboratory floor space
- Completely automatic - plug it in and forget about it
