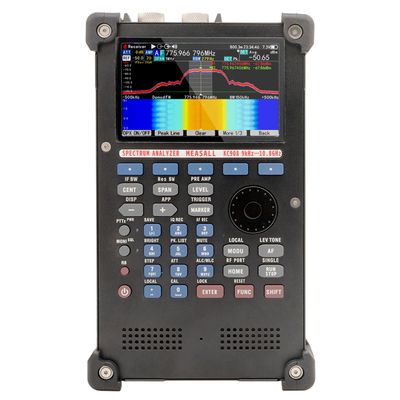

Deepace - Model KC908 - Ultra-lightweight Spectrum Analyzer/Monitor Receiver
KC908 is a wide-band sweep receiver, it is capable of measuring spectrum and field strength,demodulating and monitoring signals likeFM SSB P25 Tetra and DMR. As for uncommon signals, KC908 can record the IQ signal and save to micro SD card.
KC908 is based on SDR construct. Different from other PC-based SDR receivers, KC908 integrates complete digital signal processing unit and user interface, it is no need to use with PC. Also KC908 supports SDR software like HDSDR and is able to connect with GNURadio.
Fast sweep reaches 3GHz bandwidth per-second with a 10kHz frequency resolution, which is equivalent to 120,000 25kHz channels. It takes less than 0.1 second to sweep 300-500MHz,. We’re proud of such a decent performance on a micro-size hand-held equipment.
Signal source function able to generate RF signals and play IQ files in full frequency range.
Real-time bandwidth 15MHz max, waterfall graph and digital phosphor display. Multiple demodulation mode and IQ record.
Full frequency rang support, 90dB setting range of output level, AF/FM/PM modulation and IQ replay.
3GHz/s fast sweep, zero to full span sweeping, configurable RBW, storing a list of signals of interest.
Compares the phase and amplitude of the two channels and displays the difference.
- DMR/TETRA/P25 and other digital-voice demodulation
- Monitoring with multiple squelch and analysis
- High volume audio output for noisy environmen
- Record IQ and audio to TF card
- Zero to Full span for spectrum mode with 3GHz/s fast sweeping
- Better than 15KHz frequency measurement accuracy with any sweep span
- Full band RF signal source with 90dB adjustable amplitude and IQ replay
- +10dBm output level up to 18.6GHz (KC908B Only)
- GNURadio connectivity
