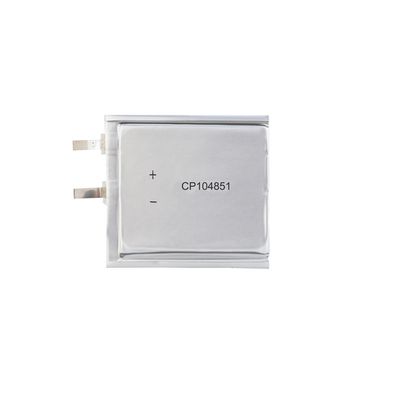

Fanso - Model CP104851 - Ultra Thin Batteries
Model No: CP104851. IECSize: —. Voltage(V): 3.0V. Weight(g): 4gram. Current(mAh\mA): 380. Max constant current(mA): 30mA. Operate Temp.(°C): -40 to t-60. End voltage(V): 1.8V.
Most popular related searches
non-flammable electrolyte
backup power
power electronic
cell operating temperature
high voltage operations
incineration
incinerator
- Dimension: 1.0*48.0*51.0mm;
- Weight:4g;
- Capacity: 380mAh;
- (at 1mA,+25℃, 1.8V cut off)
- Open circuit voltage: 3V
- Max continuous current: 30mA
- （at 25℃1.8V cut off, up to 50% of nominal capacity）
- Max pulse current:50mA;
- (15second pulses to 1.8V cut off, drained from half-discharged cells at 25℃)
- Operating temperature: -40℃ ~ +60℃;
- High and stable operating voltage;
- Long shelf life(Self-discharge rate less than 1% at 25℃);
- Long operating life;
- Wide temperature range;
- Stainless steel container and end caps;
- Hermetic glass-to-metal sealing;
- Non-flammable electrolyte;
- Compliant with IEC86-4 safety standard;
- Non-restricted for transport;
- 1High energy density(700kw/kg).
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
