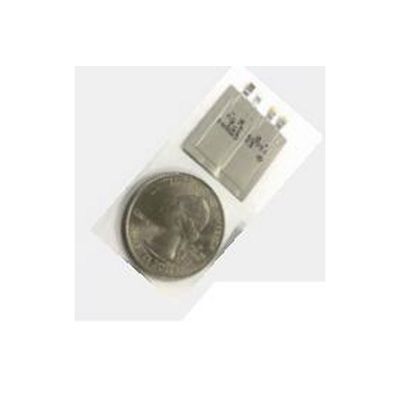

CAP-XX - Model DMHA14R5V353M4ATA0 -Ultra Thin Prismatic Supercapacitor

Note that the DMHA14R5V353M4ATA0 is actually 2 independent cells, with 2 terminals for each cell. Referring to the mechanical drawing, for one cell the negative terminal is labelled (-) and the positive terminal labelled (bal 1), while for the other cell the negative terminal is labelled (bal 2) and the positive terminal labelled (+). The user can connect the 2 cells in series or in parallel, or as 2 individual supercapacitor cells. If connected in series then connect (bal 1) to (bal 2). If connected in parallel then (-) must be connected to (bal 2) and (bal 1) must be connected to (+). The table gives the electrical characteristics for the different configurations
