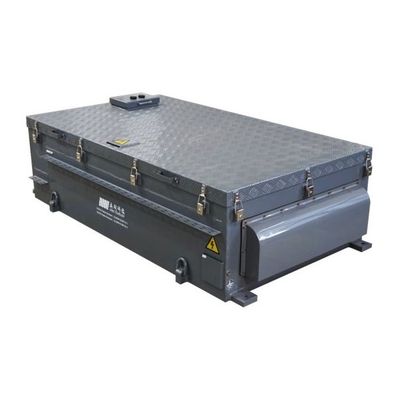

Aowei - Model S545V19-K8-A -Ultracapacitor UC System for Tram
Ultracapacitor system for tram can customize system solution which according to the voltage and energy requirements of tram operation, it has high power and high energy, its duel operation mode including "opportunity charging" and " terminal charging". The system adapts to contacted network, mixed network, contactless network operation conditions. It can be applied to tram, marine charger, power compensator and other high power and high energy applications.
Most popular related searches
- Customized system solution according to the voltage and energy requirements of tram operation
- High power and high energy, duel operation mode including "opportunity charging" and " terminal charging"
- System adapts to contacted network, mixed network,
- Applications:Tram,Marine charger,Power compensator
- Characteristics:Customized system solution according to the voltage and energy requirements of tram operation
- Tram
- Marine charger
- Power compensator
- Other high power and high energy applications
- Part Number: S545V19-K8-A
- Basic Module: MUCK24V2870
- Module Connection Type: 24 series
- Nominal Capacitance(F): 583
- Operating Voltage Window(V): 410~547
- Surge Voltage(V): 605
- Stored Energy (kWh): 9.5
- Standard Charge Current (A): 300
- Standard Discharge Current (A): ≤300
- Maximum Charge/Discharge Current(<20s) (A): 510
- Operating Temperature(oC):
- -25~55(QC/T 741-2014)
- -15~55(140A)
- Storage Temperature (oC): -30~+65
- Protection Level: IP65(Except inlet and outlet)
- Electric Property: Overvoltage, overcurrent, overheat, overload, short circuit, DC leakage protection, etc
- Capacitor Management System: Automatic balance, voltage monitor, temperature monitor, DC leakage monitor, etc
- Cooling Mode: Air cooling
- Communication Interface: CAN
- Size(mm): 1950*1170*645
- Weight(kg): 1000
