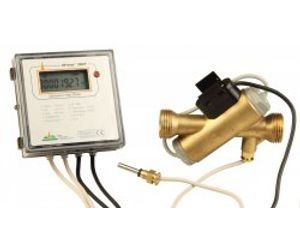

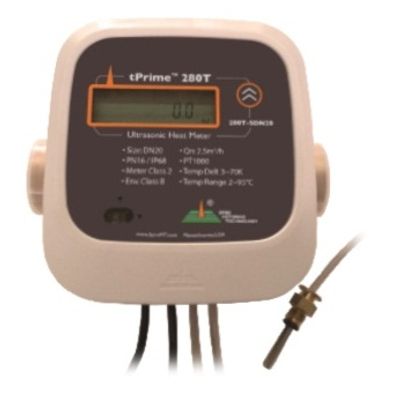

Spire Metering - Model 280T-S -Ultrasonic Heat Meter
Optimizing control of tenant, building and campus climate requires accurate monitoring the flow of your heating and cooling energy. Spire’s 280T-S incorporates arrayed ultrasonic transducers and paired PT1000 sensors, delivering continuous BTU and flow information to support your energy conservation, optimization and revenue collection goals. Proven ultrasonic technology and multiple communications options provide complete utility billing solutions.
Most popular related searches
heating and cooling
district heating and cooling
ultrasonic heat meter
energy measurement
battery supply
heat meter
BTU measurement
HVAC energy management
energy distribution
district heating
In line Ultrasonic Energy Measurement
- Energy Measurement per standard OIML R75/EN1434
- 232 psi (PN16) at 203o F (266o F available)
- Paired PT1000 temperature sensors
- Display mounts on the body or remotely, prewired
- No moving parts
- Threaded connection ¾” to 1½”/DN20 to DN40
- Flanged connection 2” to 12”/DN50 to DN300
- Wear-free ultrasonic measurement. No maintenance needed
- Robust sensor design. Excellent long-term stability. Accuracy does not degrade over time
- Not impacted by water impurity or magnetic interference
- Wide measurement range
- Low pressure drop
- For both hot and cold water
- Free positioning for mounting
- Battery supply for 6 or more years
- Nominal pressure up to 1.6MPa
- Pulse / M-Bus / MODBUS /BACnet /LonWorks /Radio for remote readout
- Optional AMR and data management software
- Simple and easy to install. Electronic box can be detached from the sensor body and installed separately
- Low cost over long run, Low cost of ownership
- Residential submetering
- Commercial buildings
- District heating / cooling
- HVAC
- Green energy management
- AMR and Billing
INSTALLATIONS:
- Universities
- Hospitals
- Industrial Campuses
- Multi-Unit Residential
- Multi-Unit Commercial
INSTALLATIONS:
- Energy Distribution
- Submetering
- Compliance Reporting
- Process Control
