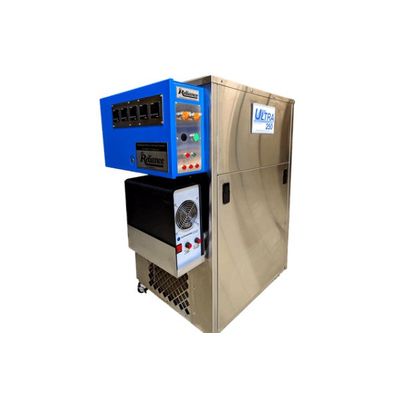

Reliance ULTRA - Model 250 - Ultrasonic Vapor Degreasing System

SHARE

Replace your old vapor degreaser with the ULTRA™ 250, a compactsystem (on casters) that provides significant cleaningin a small footprint. It is also ideal for companies with "cleaning cells" or who need smaller vapor degreasing units placed at point-of-use throughout the plant. The ULTRA™ 250 fits into synchronous manufacturing very nicely. The ULTRA 250 works well with our AeroTron™-100 modern solvents as well as other non-flammable degreasing solvents.

Most popular related searches
vaporizer
lighting system
electrical engineering
vaporizer system
clean power
  • Compact Footprint Fits Thru 30" Door
  • Excellent Solvent Containment
  • Extended Refrigeration Zone
  • 250 Watts of Ultrasonics with Frequency & Sweep
  • Digital Temperature Readouts
  • Easy Maintenance
  • On Casters for Mobility
  • Compatible with Variety of Solvents
  • Optional Spray Wand

Dimensions

  • Ultrasonic Cleaning Tank : 9"L x 11"W x 8" Deep
  • Vapor Cleaning Zone : 18"L x 11"W x 8" Deep
  • Boil Tank : 9"L x 11"W
  • Footprint Dimensions : 36"L x 24"W x 44" High

Features

  • Ultrasonic Cleaning : 250 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. Optional Feature.
  • Vapor Cleaning : Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank
  • Hand Wand Spray Cleaning : Yes - Optional
  • Continuous Filtration of Ultrasonic Tank : Yes - Optional

Solvent Containment

  • Extended Primary Condensing Coil : Refrigerated Stainless Steel
  • Freeboard Ratio : 100%
  • Horizontal Slide Lid : Manual
  • Solvent Safety Indicators & DigitalTemperature Controls : HTC, LTC, SVC, VU, RT and Low-Level Float
  • Monitoring of the Vapor Degreaser’s Correct Operating Condition : Comprehensive Indicator Light System and Temperature Displays

Operating Requirements

  • Solvent Operating Requirement : 5.6 Gallons
  • Typical Electrical Service : 208V or 240V / 1 Phase
  • Value - Smart compact system that processes lots of parts - fast!
  • Easy to support in the field - accessible heating elements, clear temperature digital read-outs, sophisticated indicator light system
  • Safety - Solvent Low-Level float safety indicator
  • Cost effective - reduced solvent use and easy maintenance
  • Powerful - 250 Watts of Ultrasonics - field replaceable transducers and plug in external ultrasonic generator for easy servicing. And adjustable power & sweep frequency
  • Off-the-Shelf Components - for simple maintenance & minimized down time
  • Digital Display Safety Controls - including HTC, LTC, SVC, VU, RT
  • Compact Footprint - fits through standard door frame
  • Use with a Variety of Non-flammable Solvents - including AeroTron™-100 advanced chemistries
  • State-of-the-Art Engineering - for simplicity, field supportability and reliability
  • Stout - solid tank construction with heavy gauge 304 stainless steel
  • Minimal Solvent Emissions & Reduced Operating Costs
  • Excellent Training - start-up, shut down, maintenance and good solvent cleaning work practices
  • INLCUDES: One (1) Stainless Steel Workbasket, Comprehensive 1-Year Manufacturer`s Warranty, & ULTRA™ 250 Operator`s Manual
