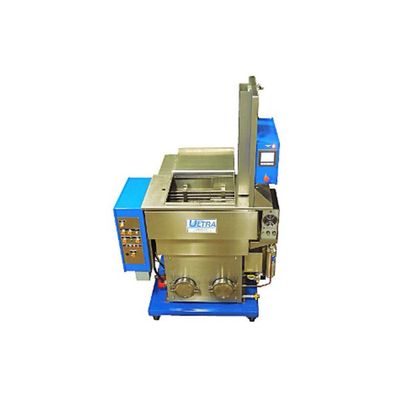

Reliance ULTRA - Model 1212 LE - Ultrasonic Vapor Degreasing System
Vapor Degreaser Foot Activated Spray Lance System Foot Activated Spray Lance System. Vapor Degreaser Primary & Sub-Zero Coils Primary & Sub-Zero Coils Running Standard Refrigerant. Vapor Degreaser Simple Control Safety Panel Simple Control Safety Panel.
Most popular related searches
vaporizer system
vaporizer
lighting system
electrical engineering
electrical heating
electrical heat
clean power
- Easy Maintenance
- Spray Wand for Additional Cleaning
- Excellent Solvent Containment & NESHAP Compliant
- Reduced Solvent & Operating Costs
- Small Foot-Print
- On Casters for Mobility
- Compatible with Variety of Solvents
- 120% Freeboard
Dimensions
- Ultrasonic Cleaning Tank : 12”L x 12”W x 10” Deep
- Vapor Cleaning Zone : 24”L x 12”W x 10” Deep
- Boil Tank : 12”L x 12”W
- Footprint Dimensions (without casters) : 44”L x 44”W x 45.5” High
Features
- Ultrasonic Cleaning : 500 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep.
- Vapor Cleaning : Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank
- Spray Cleaning : Hand Spray Wand and Large Spray Reserve Tank
- Filtration of Ultrasonic Tank : Continuous Filtration
- Boil Tank Access Door : “Easy Ring” Door System
- Ultrasonic Tank Access Door : “Easy Ring” Door System
Solvent Containment
- NESHAP Compliant Features : Yes
- Primary Condensing Coil : Refrigerated Stainless Steel
- Low-Temp Freeboard Condensation Coil : Refrigerated Finned Stainless Steel operating at -10F to -20F
- Freeboard Ratio : 120%
- Horizontal Slide Lid : Manual or Automated
- Watlow Solvent Safety and Temperature Controls : HTC, LTC, SVC, VU, RT and Low-Level Float
- Monitoring of the Vapor Degreaser’s Correct Operating Condition : Comprehensive Indicator Light System and Temperature Displays
Automated Part Cleaning
- BHE Automated Basket Handling System : Yes—Optional
Operating Requirements
- Solvent Operating Requirement : 17 Gallons
- Typical Electrical Service : 208V or 240V / 1 Phase
- NESHAP Compliant - Vapor Degreasing System
- Solid Tank Construction - Heavy Gauge 304 Stainless Steel
- Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with R134A refrigerant
- Sub-Zero Temperature Condensing Coil - Finned stainless steel with Copeland R404A refrigeration system operating to approximately -20F to supplement primary condensation system. Includes defrost cycle, low-temperature condensing coil with condensate trough
- Foot Activated Spray Lance System - mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand
- High Volume Condensate Water Separator - feeding spray reservoir
- Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
- Ultrasonic Power – 500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
- Ultrasonic Power - Input adjustment & sweep frequency adjustment
- Ultrasonic Immersion Sump filtration and recirculation system with mag-drive pump
- WATLOW Temperature Safety Limit Controls with digital display on Control Pan-el; temperature set point as well as actual temperature – SVC (Safety Vapor Con-trol), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
- Solvent Low-Level Float Safety
- Control panel with solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”
- Manual Horizontal Slide Lid - for solvent containment
- Casters - for easy movement
- Electric Immersion heat - "Screw-In" Type Elements for easy replacement
- Two Sump Access Clean-Out Doors - Boil Sump & Immersion Sump access for ease of maintenance though the clean-out door rather than over the tank top
- One (1) stainless steel workbasket
- Comprehensive 1-Year Manufacturer’s Warranty
- ULTRA™ 1212 LE Operator’s Manual
- Simple engineering and stoutness of design for durability and ease-of-maintenance
- Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
- Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
- Cost effective operation and maintenance
- Compact footprint
- Effective with a variety of non-flammable solvents, including chlorinated, brominated & fluorinated
- State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
- Minimal Solvent Emissions & Reduced Operating Costs due to NESHAP Compliant coils
- Increased tank depth for increased vapor zone
- Electric horizontal slide lid
- Additional baskets
- Solvent Containment Spill Tray
- Increased Ultrasonic Power
- Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ & AeroTron™
- Automated Vertical Basket Handling System
