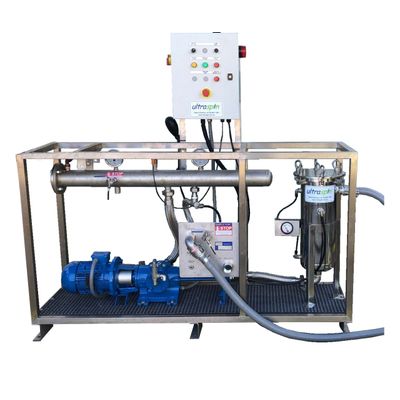

Ultraspin EDGE - Small Flow Electric System
Up to 7 m3/hr. 15 to over 150 micron oil droplet size rating options. Electric powered including controls. Pump dry run protect standard on oily water separator. Backflush option available.
- Powerful
- Lowest Ownership Cost
- Simple and Reliable

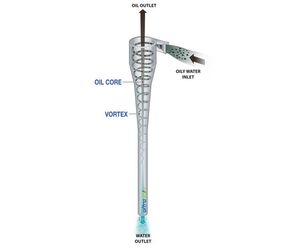

Like many oil water separators, the Ultraspin system separates the oil/fat and the water based on the density difference – the oil/fat droplets being lighter than the water. To do this the oily wastewater is pumped tangentially into the separator which forms a powerful vortex and huge centrifugal forces. The force created, squeezes the lighter oil/fat droplets into the center of the vortex and two streams are generated: treated water ready for discharge or reuse, and the separated oil for storage and disposal.
- The centrifugal separation force generated is over 1000 times the force of gravity!
- Separates emulsified oil droplets as small as 10 microns!
The Ultraspin separator is one of the simplest and most powerful oil water separators available. And all with no consumables and no chemicals!
See it for yourself!
