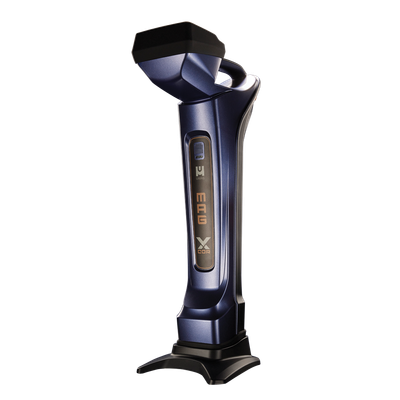

Underground Magnetics - Mag X COR Receiver

SHARE
The Mag X COR receiver from Underground Magnetics is tailored for precision and reliability in drilling operations. Integrated with Faraday-shielded 3D antennas, it covers a vast frequency range of 0.325 kHz to 41 kHz across 16 frequencies. This receiver operates efficiently in extreme temperatures, ranging from -4°F to 140°F (-20°C to 60°C). It is equipped with four radio channels, reaching up to 3,000 ft (900 meters). Powered by a rechargeable 12.5V Lithium battery, it ensures a continuous 50-hour operation. The IP65 rating denotes its sturdy build against dust and water. The Mag X COR is compatible with various Echo transmitters including Echo ST, Echo X-Mini, Echo 50XF, and Echo 70. Starting at $9,000, the system's price extends to $19,000 depending on the chosen configuration, promising a blend of cutting-edge technology and robust performance for demanding applications.
Most popular related searches
rechargeable lithium battery
lithium battery
power meter

Drill with Ease

The Mag X COR provides you with the core features you want and pairs it with the power you have come to know from our locators.



Core Features

  • Simplicity Paired with Power
    • Premium HDD locator experience in a simplified package
    • Stand-up receiver with 4” reflective LCD display
    • Color 7” Android-based touch screen drill display
    • Tracking-on-the-Fly for fast, accurate, everyday locating
  • Built-in Data Logging
    • Simplified one-touch logging integrated into the remote drill display
    • Rodwise and chart views with the ability to edit and add utility crossings
    • Easily emailed directly from the display and synced to the UMmaps web portal

Weight: 8.5 lbs
Dimensions: 29 × 9 × 13 in
Antenna: Faraday Shielded 3D Antennas
Compatible Transmitter: Echo 50, Echo 50XF, Echo X-Mini, Echo ST
System Frequency: 16 Frequencies, .325kHz – 41kHz
Temperature Range: -4°F to 140°F (-20°C to 60°C)
Radio Frequency: 915 MHz
Telemetry: 4 Radio Channels with range up to 3,000 ft (900m)
Power: Rechargable Lithium Battery 12.5V
Battery Life: 50 hours
Waterproof: IP65
