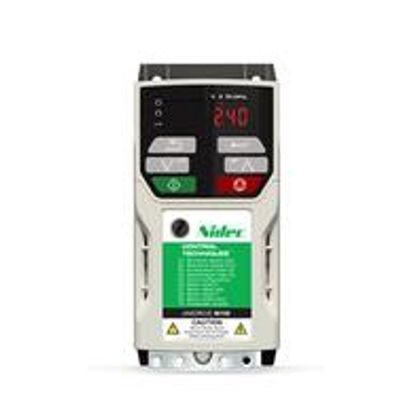

Unidrive - Model M400 -Low Voltage AC Drives

FromControl Techniques, a Nidec Brand

SHARE

Unidrive M400 minimizes downtime with an intuitive LCD display for rapid set-up and clear diagnostic help. The integrated PLC can execute a substantial range of sequencing and logic programs. Coupled with an impressive I/O count complete with two STO inputs and an SI interface for a fieldbus option or extended I/O, the feature set ensures Unidrive M400`s flexible integration with any system. Unidrive M400 provides an upgrade path for existing Commander SK users who use LogicStick.

Most popular related searches

low voltage AC drive

induction motor

low voltage drive

Minimize downtime and system set-up time with advanced keypad options

Informative, multi-language, 3 line display aids set up and provides diagnostic information
4 navigation buttons facilitate intuitive navigation and programming
Keypad options available:

CI Keypad - Drive mounted LCD keypad
Remote IP66 keypad - rapid panel mount (1 x 32mm Ø hole)
No Keypad - Control/programming performed by PC or fieldbus

Reduced system costs by directly integrating with applications

M400 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic and sequencing with real-time tasks - removing the need for additional PLC`s
Fit an SI module to add a fieldbus communications option or additional I/O

Improve throughput with advanced openloop motor control algorithms

Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers
180% motor overload suitable for heavy industrial machinery applications
Precise frequency following is possible from an encoder or frequency/direction inputs

Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems

M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components
