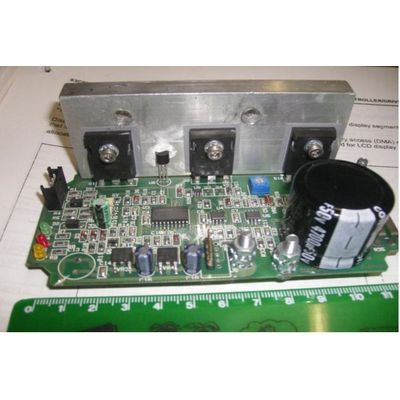

Unify Electronic - Model CHOP 01-103015 -PWM Electronic Regulator for DC Motor with an Open Loop
The CHOP 01-103015 regulator is a PWM electronic system that allows to check DC permanent magnet motors with a maximum current of 15 A. The system is called open loop because there is no feedback control on current consumption.
Most popular related searches
- SUPPLY VOLTAGE : 10V-30V
- SELF-CONSUMPTION : .0,50 A
- RECOMMENDED POTENTIOMETER : 4K7/10K
- INPUT REFERANCE : = Vcc
- ZONE OFF : .0V
- ADJUSTMENT CURRENT : from0.05A@ 15 A
- SPEED SETTING : through Potentiometer or Software
- TIME RAMP SETTING : through Software
- PWM : 10 khz
- PWM RESOLUTION : 9 Bit
- TOLERANCE : ..+/-2%
- TEMPERATURE FIELD : -15°C -*- +70°C
- SIGNAL TERMINATIONS : connector AMP MODU II
- POWER TERMINATION : screws diam. 5mm
- PRTECTION LEVEL : humidity through resin
