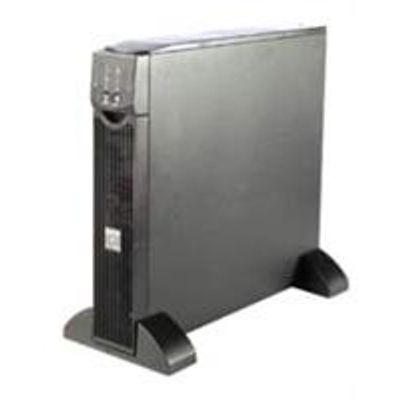

SeaSonde - Model 1500-120V or 1500-220V - Uninterruptable Power Supply (UPS) Power Conditioning Unit
An Uninterruptible Power Supply (UPS) connecting the SeaSonde unit to power source (e.g. wall plug) will provide layer of protection to electronics from power surges that come from power line and also provide for continued quality performance through power fluctuations (sometimes referred to as “brownouts”). UPS is rated at least 1500VA (1050 watts). The UPS is intended to only provide power conditioning to the SeaSonde. Neither air-conditioning unit nor any other electronics operating at site should be connected to the UPS.
UPS is intended for indoor use only.
UPS Features: 1050 Watts / 1500 VA, Interface Port DB-9 RS-232, Extended runtime model, Rack Height 2 U Select from one of:
- CODAR Product Code UPS1500-120V Input 120V / Output 120V,
- CODAR Product Code UPS1500-220V Input 220V / Output 220V
Includes: CD with software, Documentation CD, Installation guide, Smart UPS signaling RS-232 cable, USB cable, User Manual.
UPS Output
- Output Power Capacity: 1050 Watts / 1500 VA
- Max Configurable Power: 1050 Watts / 1500 VA
- Nominal Output Voltage: 120V
- Output Voltage Distortion: Less than 3% at full load
- Output Frequency (sync to mains): 50/60 Hz +/- 3Hz user adjustable +/- 0.1
- Crest Factor: up to 5 : 1
- Waveform Type: Sine wave
- Output Connections: (6) NEMA 5-15
- Bypass: Built-in bypass
UPS Input
- Nominal Input Voltage: 120V (for UPS1500-120V)
- Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 1.83 meters
- Input voltage range for main operations: 92 - 147V
- Input voltage adjustable range for main operations: 90 - 150V
- Battery Type: Maintenance-free sealed Lead-Acid battery with
- suspended electrolyte : leakproof
- Typical recharge time: 3 hour(s)
- Typical Backup Time at Half Load: 22.2 minutes (525 Watts)
- Typical Backup Time at Full Load: 8.6 minutes (1050 Watts)
Communications & Management
- Interface Port(s): DB-9 RS-232, Smart-Slot, USB
- Available SmartSlot™ Interface Quantity: 1
- Control panel: LED status display with load and battery bargraphs
- and On Line : On Battery : Replace Battery : and
- Overload Indicators,LED status display with On Line : On Battery
- : Replace Battery and Overload indicators
- Audible Alarm: Alarm when on battery : distinctive low battery
- alarm : configurable delays
- Emergency Power Off (EPO): Yes
Surge Protection & Filtering
- Surge energy rating: 540 Joules
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical Dimensions
- Max.: 432mm H x 85mm W x 559mm D
- Rack Height: 2U
- Net Weight: 27.5 KG
Environmental
- Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95%
- Operating Elevation: 0-3000 meters
- Storage Temperature: -20 - 50 °C
- Storage Relative Humidity: 0 - 95%
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 45.00 dBA
- Online Thermal Dissipation: 393.00 BTU/hr
