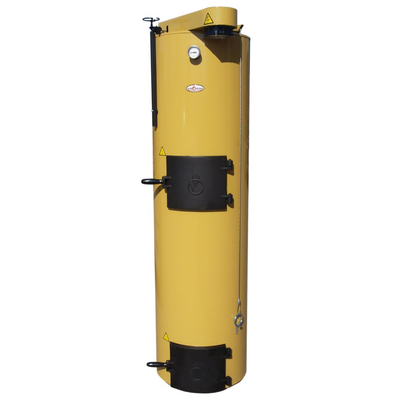

Stropuva - Model S12U – 12 kw - Universal Boiler
When the firewood is loaded, a single load burns up to about 30 hours. A single load of sawdust briquettes burns up to 4 days. Solid fuel: firewood, timber waste, sawdust, straw, peat briquettes and coal. Combustion duration of solid fuel load depends on its quality of fuel, outdoor and indoor temperature, thermal resistance, and other factors. Recommended moisture ≤30%*.
Most popular related searches
wood pellet burning
wood pelletizing
wood pellet
wood pelletting
wood burning
coal burning
peat briquetting
pellet burning
coal combustion
boiler efficiency
- Model,: S12 U
- Power (kW)*: 12
- Heating area(m²)**: 70-120
- Fuel capacity (dm³): 168
- Maximum amount of firewood (kg): 40
- Maximum amount of wood pellets (kg): 105
- Maximum amount of briquettes (kg): 48
- Maximum amount of coals(kg): 95
- Wood burning time on minimum mode (hours): 31.5
- On maximum mode ***: 6.1
- Wood pellets burning time on minimum mode (hours): 72
- On maximum mode ***:
- Briquettes burning time on minimum mode(hours): 96
- On maximum mode ***: 24
- Coal burning time on minimum mode (hours): 130
- On maximum mode ***: 32
- Length of firewood up to (cm): 45
- Amount of water in the boiler (l): 32
- Efficiency (%): 86.8
- Pressure safety valve (bar): 1.5
- Chimney draught (Pa): 10-20
- Flow of heated water (l/h): 300
- Water temperature in the boiler (°C): 85
- Minimal area of chimney flue (cm²): 250
- Chimney diameter (mm): 180
- Distance between boiler bottom and chimney (mm): 1300
- Height (mm): 1700
- Diameter (mm): 560
- Weight (kg): 213
