DEHN - Model BLITZDUCTORconnect -Universal Combined Arrester
This universal combined arrester protects measuring and control, bus and telecommunications systems in industrial environments from damage caused by lightning and surges. With a high lightning current discharge capacity of 3 kA (total) and low protection levels, this new generation of devices is ideally suited for the protection of terminal devices.
You need to reliably protect measuring and control as well as process automation systems in an industrial environment?

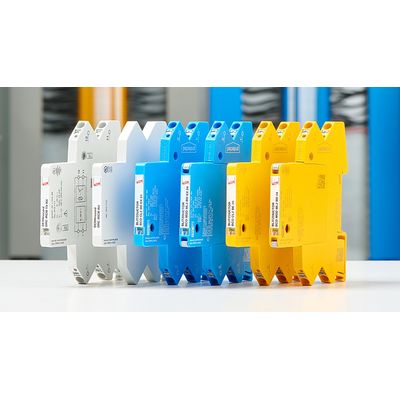

The variety of BLITZDUCTORconnect types and variants allows you to find exactly the right arrester for your requirements. A special Ex-approved range of arresters is available for intrinsically safe signal circuits.
1 Release button
Connection terminal
2 Measuring sockets
For easy maintenance
3 Fail-open failure mode
The signal remains available
4 secR technology
Safe removal of the modules
5 Push-in connection terminals
45° inclined, up to 2.5 mm2
6 Earthing contact
35 mm DIN rail
7 Signal disconnection / protection against polarity reversal
Easy maintenance by pulling out the arrester module, turning it 180° and plugging it into the base part again
8 Remote monitoring
Thanks to optional remote signalling transmitter and receiver unit
9 LifeCheck indication
For visual status recognition
