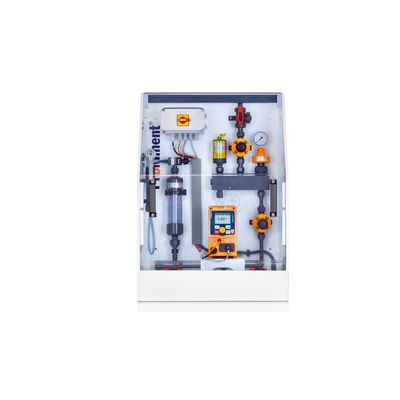

ProMinent Dulcodos - Model PP - Universal Metering System
Up to 75 l/h (10 – 2 bar) pump volume depending on the pump selected. The metering system DULCODOS universal mini PP combines reliable standard components, tailored precisely to your needs, in the most compact space.
Compact metering system meters liquid chemicals cost-effectively and reliably
The metering system DULCODOS® universal mini PP is supplied ready connected and its small footprint enables it to be integrated simply into the process. The construction is exceptionally well arranged with the new valve block.
The compact metering system is optionally available with up to two solenoid-driven metering pumps of the product range Beta® 4 or 5, gamma/ X and gamma/ XL. It is also unbelievably simple. The system is cost-effective and can be delivered extremely quickly.
- Compact and clearly laid out construction
- Reliable and precise metering of liquid chemicals with proven solenoid-driven metering pumps
- Systems with 1 or 2 pumps and 1 or 2 points of injection
- Calibration unit with priming function for controlled metering
- Optional: Pulsation damper, spray guard
- Optional: DULCONNEX connection (Wi-Fi)
- Cooling water treatment
- Waste water and process water treatment
- Paper industry
- Food industry
- Beverage industry
- ProMinent solenoid-driven metering pumps Beta® 4/5, gamma/ X or gamma/ XL
- Dimensions of metering frame:
- Type 1: 850 x 600 x 520 mm (H x B x T)
- Type 2: 1,000 x 700 x 520 mm (H x B x T)
- Type 3: 850 x 900 x 520 mm (H x W x D)
- Collecting pan with leak sensor
- Flushing connectors
- Terminal box with master switch
- Range of spray guards
- Mounting frame material: PP
