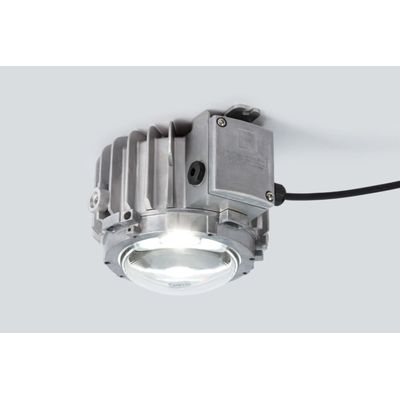

STAHL - Model Series 6050/6 -Universal Spotlight LED
FromR. STAHL AG
Art. No.: 292300. Product Type: 6050/604-202-6B2-000850-001. Max. ambient temperature: +60 °C, min. ambient temperature: -40 °C. Lamp wattage: 20 W. Frequency range: 50 - 60 Hz. AC rated operational voltage: 220 - 240 V. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Version: Bracket mounting. Certificates: ATEX (BVIS), Brazil (ULB), IECEx (BVIS). Lamp type: LED. Lamp: LED. Reflector: No. Cable glands and entries: 1 x M25 x 1.5. Stopping plugs: 1 x M25 x 1.5. Wire guard: No.
Most popular related searches
- MY R. STAHL: 6050C
- Product Type: 6050/604-202-6B2-000850-001
- Highlights:
- Extremely compact universal light fitting with 4 power classes
- Can be used as a ceiling light fitting, pendant light fitting or floodlight
- Three light distribution curves available: Ultra-wide-beam, wide-beam and medium-wide-beam
- Glare-free thanks to opaque light fitting covering
- Quick, easy installation thanks to Ex e connection chamber
- Universally suitable for use in particularly cold environments as cold as -55 °C
- Suitable for particularly high ambient temperatures up to +70 °C
- Functional Description: The 6050/6 universal spotlight is equipment used for lighting areas, work equipment and objects. It can be used indoors and outdoors. The clear lens is available in a matted version to limit the glare. Using an internal reflector, the universal spotlight can be adapted as a narrow beam, wide beam or a medium-wide beam to suit the lighting task.
