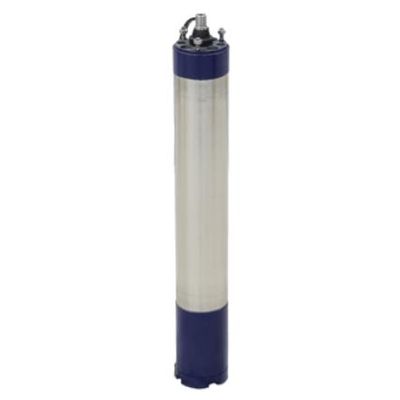

Unnati - Model 50/60 Hz- UO3 Series -3” Oil Lubricated Motors
UO3 series 3-inch submersible motors - Ideal for water-wells of 3-inches or larger diameter. Easy to repair or rewind as fitted with CSCR and CSR system, the UO3 series is fitted with enameled copper wire (Class-H) for stator winding. For flawless sealing this submersible motor is fitted with a mechanical shaft seal of carbon and ceramic and oil seal of Nitrile rubber. But that’s not all, pressure equalizing rubber diaphragm protects from the pressure and volume variation and hence it is used for fountains, gardening/horticulture, pressure boosting units.
-
Agriculture
-
Domestic
-
Unnati Oil Submersible Motor Lubricated & Cooled by Non-Toxic, Eco- Friendly Fluid of high di-eletric Strength
-
Lubricated Ball Bearing for trouble Free Long lasting Operation.
-
Shaft Extension Made of Stainless Steel AISI 420
-
Mechanical Shaft Seal (Carbon/Ceramic) Provided.
-
High efficiency electrical design for lower operating cost.
-
Pressure Compensation diaphragm
-
All single Phase Motors require Control Box
-
Flow Range : 1.74 to 3.60 M3/h
-
Head Range : 18 to 90 Meter
-
Ratings : 0.37 Kw to 1.10 Kw
-
Rating Speed : 2790 RPM
-
Rewindable
-
Upper and Lower Housing & motor base : Graded C.I Casting with Epoxy Paint
-
Stator Shell : Stainless steel
-
Motor Shaft : S.S 420
-
Winding Wire : Enameled dual coated copper with insulation class- H
-
Degree of Protection : IP 68
-
Max oil Temperature : 50’C
-
Nos. of Start per Hour : Max 20 at regular intervals
-
Voltage variation : +6% / -10% at rated voltage
-
High Dielectric strength non- toxic fluid
-
Max depth immersion : 100 meter
-
Motor Cable Length : 3.0mtr(3 core/ 4 core )
-
Mounting : Vertical / Horizontal
-
Single Phase motor – Capacitor Start Capacitor Run (CSCR) & Capacitor Start Run (CSR)
