Used Engine Oil Recycling Machine
-
Most popular related searches
Used engine oil refers to engine oil has become bl...
Used engine oil refers to engine oil has become black and the viscosity has increased, because of mixing with water, dust, other oils as well as metal powder; it also refers to engine oil has deteriorated and produced organic acid, colloids and asphaltic substances. Recycling of waste engine oil is to removal impurities using settlement, distillation, acid, alkaline as well as filtering.
Distillation is to pump motor oil or pyrolysis oil from waste pyrolysis plant into reactor, then to heat reactor at normal pressures. Gasoline will be produced when temperature is rising at 180 degrees Celsius, diesel oil will be produced when temperature is rising between 180-360 degrees Celsius.
Akfen Muhendislik is a professional manufacturer in waste engine oil regeneration machine. Our plant can refine various of waste motor oil into high-quality base oil and high-purity gasoline and diesel oil. Cost of this oil regeneration system is low, but base oil produced has high quality. Our company owns the most advanced process technology, and our plant is very suitable for large-scale and industrialized production. More importantly, it is a green and free of pollution due to any pollution, odorless, emission and smoke will not be produced in the whole process. There are two types including batching and continuous used engine oil recycling plants, in accordance with different requirements of customers.
Basic Parameter of Used Engine Oil Recycling Machine from Akfen Muhendislik:
Process of Used Motor Oil Recycling Plant from Akf...
Process of Used Motor Oil Recycling Plant from Akfen Muhendislik
- Use oil pump to feed raw oil into reactor, and then make sure the door of reactor shall be closed totally.
- Heat reactor by using fuel oil, LPG, natural gas, wood as well as pyrolysis oil. Oil vapour will be released when the temperature is rising at the working point, then it will be stored in oil tank after has been cooled by cooling system. After sedimentation filtration, they will be mixed with decolorizing agent, at last they will become the qualified fuel oil at last.
- Gasoline will be released when temperature is rising at 180 degrees Celsius. Diesel oil will be released when temperature is between 180-360 degrees Celsius.
- Combustible gas has not been condensation shall be sent in the gas tank, then it will be as the fuel to heat reactor after has been sealed by water seal system.
- Combustion flue gas generated by heating reactor will be discharged through gas flue after dedusting system.

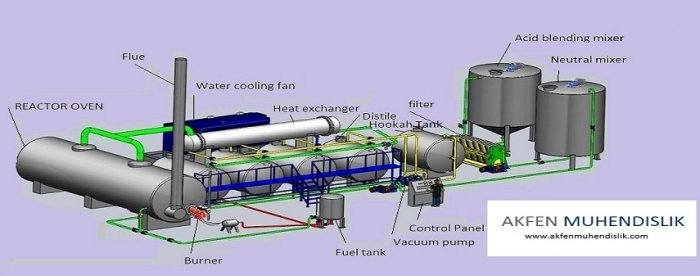

Main Parts of Used Engine Oil Recycling Plant from Akfen Muhendislik
- Pretreatment system: waste motor oil will be pumped into reactor after has been processed by the professional pretreatment system.
- Distillation system: the reactor will be heat up to working temperature using fuel oil, gas, coal and so on, the reactor will be equipped with mixing system and heat preservation system.
- Cooling system: the gaseous hydrocarbon will be cooled into liquid base oil, gasoline and diesel.
- Interim storage system: base oil, gasoline and diesel from cooling system will be stored in interim storage system, and then be pumped into storage tank.
- Vacuum system: be required by this process.
- Filtration system: to filter mechanical impurities in base oil, gasoline and diesel oil, to get high-quality base oil, gasoline and diesel oil.
Features
- Be controlled at atmospheric and vacuum, and the new hot air heating structure can extend working life of reactor by 1-2years.
- Totally-enclosed reactor and fractionating column; automatic feeding system and discharging system.
- Powerful condensing system will improve oil yield.
- Exhaust gas can meet with government emission standards after has been processed by comprehensive exhaust gas treatment system
- Variety of protective measures and closed production process can guarantee security of the whole process.
- Fully automated operation system can save labor cost.
Features
- Akfen Muhendislik used oil recycling plant is equipped with continuous feeding system and closed discharge system. There is no secondary pollution in distillation process. It is free of exhaust gas and waste water.
- It is operated with negative micro pressure, which can improve the safety of equipment operation.
- Our waste oil recycle system is continuous, which can save fuel consumption to reduce the cost.
- Wide raw materials sources, our equipment applies to all kinds of used oil.
