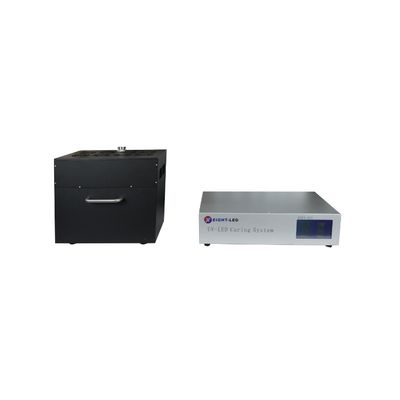

Height-LED - Model HTBX-II-FS200100-NH -UVLED Separate Oven (200*100mm)

SHARE
The UVLED Curing Oven offers a compact yet powerful solution for applications requiring focused light curing. Its light output area measures 200mm by 100mm, operating at a wavelength of 365nm, making it suitable for curing various heat-sensitive materials. The oven can be controlled via external IO signals, with real-time temperature monitoring facilitated by the RS485 Modbus-RTU protocol for remote adjustments. This device supports both automatic and manual modes, allowing users to choose either timed or manual UVLED operation. Key operational features include digital dimming and a delayed cooling fan shutdown, enhancing its practicality for industrial uses. The system's high photoelectric conversion rate ensures energy efficiency and rapid curing speed with a power consumption capped at 1.8KW. Designed to meet RoHS standards, this environmentally-conscious unit minimizes thermal stress and does not use mercury, making it suitable for diverse sectors including optical communication and precision optics.
Most popular related searches
energy efficiency
energy saving
heating and cooling
energy output
lighting energy
energy conversion

I. Equipment features

　　1. the device supports external IO signal control, real-time detection of light source temperature, RS485 Modbus-RTU communication protocol, you can operate the relevant parameters remotely.

　　2. the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, countdown automatically turn off the UVLED; manual mode, the device needs to manually turn on the UVLED, and real-time recording of curing time.

　　3. The equipment has digital dimming, delayed shutdown of the cooling fan, record the total irradiation time and other functions.

　　Second, the light source characteristics

　　1. Energy efficient

　　UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.

　　2. Wide range of application

　　UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

　　3. Long life

　　UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

　　4. Green

　　Comply with RoHS, no mercury.

  • Main Model : HTBX-II
  • Main machine size : L384mm*W284mm*H100mm
  • Curing oven external dimensions : L300*W253*H267mm
  • Curing oven cavity size : L284*W208*H159mm
  • Light output area : 200mm*100mm
  • Wavelength : 365nm
  • Optical power density : 3.5W/cm² (irradiation distance 10mm)
  • Heat Dissipation : Air-cooled
  • Lamp bead brand : Seoul, Korea
  • Lamp Bead Life : ≥20000H
  • Control mode : Microcontroller control
  • Parameter setting : Touch screen operation
  • Power Adjustment : Digital dimming (1-100%)
  • Power Voltage : AC220V 60HZ
  • Power Consumption : ≤1.8KW
  • Net weight : About 18Kg
  • Ambient temperature and humidity : Ambient temperature: -10℃-50℃
  • Relative humidity : 25%-80%RH
  • Warranty time : 1 year
