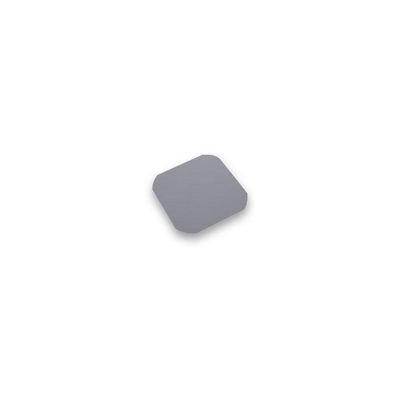

VacSol - Model CZ - Mono Crystalline Silicon Wafer
From Silicon Wafer & Ingots - Silicon Wafer
Crystal Type: Mono Crystalline (CZ). Side Length: 125X125mm. Diagonal Length: 165/150mm. Center Thickness: 200±20µm. TTV: ≤30µm. Type & Dopant: P/B. Oxygen Content: ≤1X1018atoms/cm3. Minority Carrier Life: ≥10µs. Resistivity: 1∼3, 3∼6 Ωcm. Warpage: ≤40µm. Carbon Content: ≤5X1016atoms/cm3.
-
Most popular related searches
Specifications
Surface Quality:
- no contamination
- no scratches, no notch no corner breakage
- no crack, no hidden crack
- no edge breakage
- no obvious cutting mark
- no dent, no hole, no stress
- no twin crystals
Crystal Direction: ±1°
Dislocation Density: ≤3000pcs/cm2
