Ultra Check - Vapor Check Float System (Gauge Pole Float & Reel)

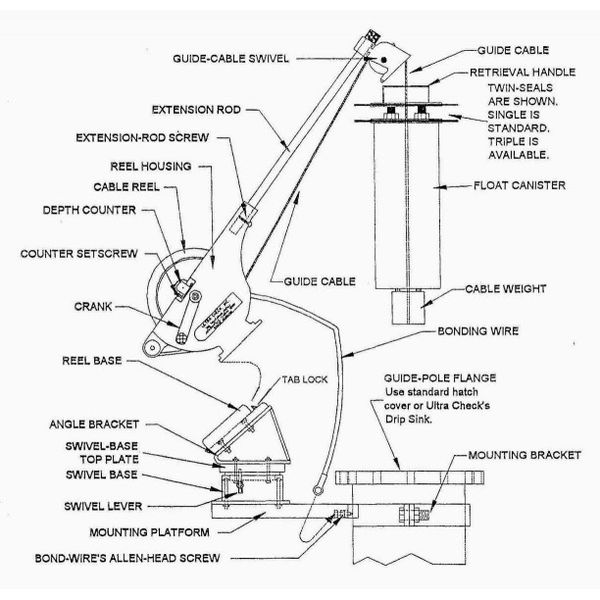

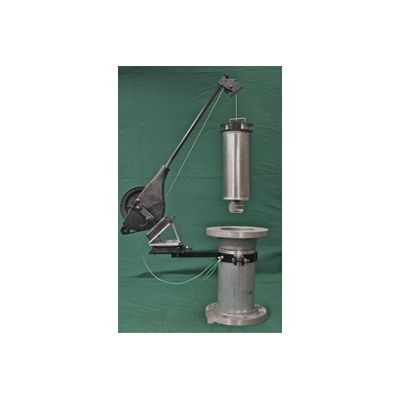

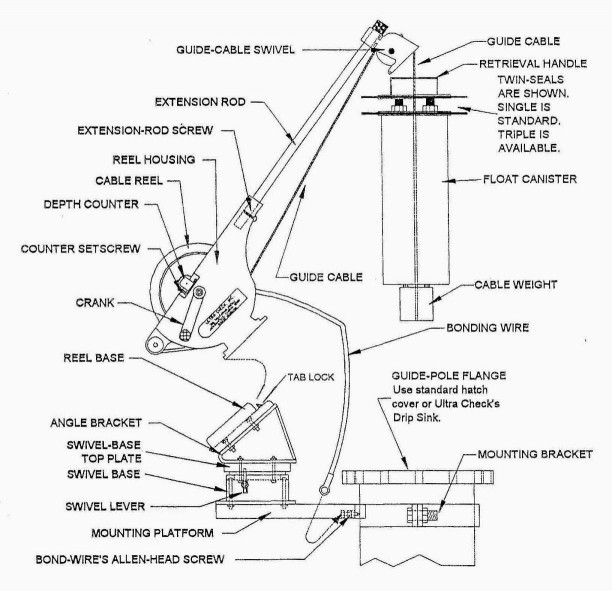

Ultra Check’s Vapor Check Float System is the more traditional style of gauge pole float but it has several important features not found in other floats. The system consists of a Float (canister), Seals, a Reel with its mounting device, and a Stainless Steel Cable and a Weight. The Float/Canister is normally made of aluminum and will have a small tube passing down through its center. The seals are mounted on top of the float. The number of seals is optional.

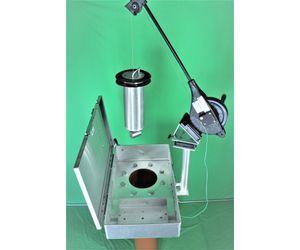

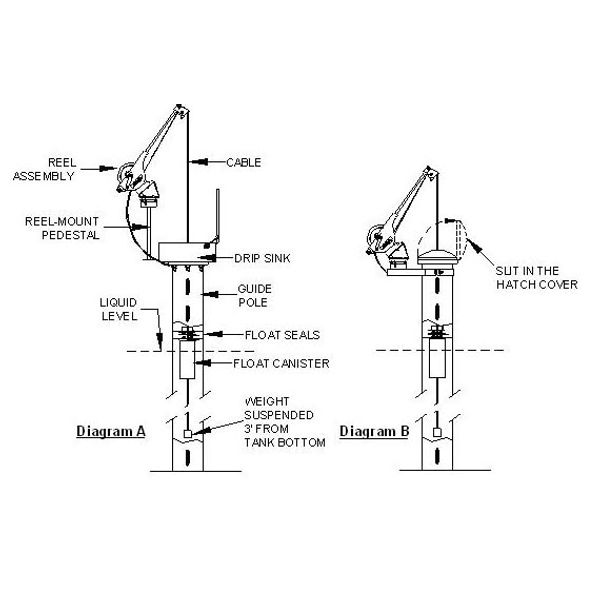

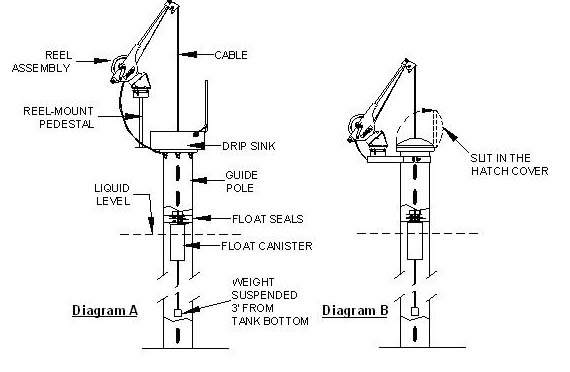

Diagram A) It can be bolted to Ultra Check’s Drip Sink (optional); the Drip Sink unit helps control the mess when floats are pulled, samples are taken or when gauging takes place.
Diagram B) The System also can be bolted directly to the gauge pole using Ultra Check’s powder-coated mounting bracket.
