Qingdao Renergy Equipment Co., Ltd.,

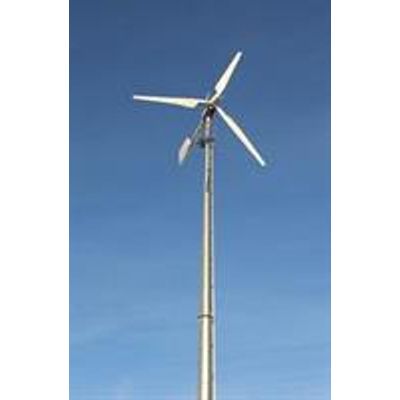

Renery - Model RW-10kW -Variable Pitch Wind Turbine
Technical parameter RW-10kW variable pitch wind turbine technical parameter RW-10kw variable pitch Technical parameters Wind rotor diameter (m) 7.6 Blade material and quantity Fiber glass reinforced * 3 Rated power / max power (w) 10k/12k Rated wind speed (m/s) 11 Rated rotating speed (rpm) 170 Working wind speed (m/s) 3-30 Startup wind speed (m/s) 2 Survived wind speed (m/s) 60 Working voltage (v) DC240V(off grid) / DC400V(on grid)AC2...
Most popular related searches
variable pitch wind turbine
wind turbine
hybrid wind and solar system
direct drive wind turbines
hybrid wind and solar
microgrid power system
direct drive wind turbine
off-grid hybrid wind and solar
wind and solar
off-grid system
- Min.Order Quantity: 1 Piece/Pieces
- Supply Ability: 10000 Piece/Pieces per Month
- Port: Qingdao
- Payment Terms: L/C,D/A,D/P,T/T
- Wind rotor diameter (m) 7.6
- Blade material and quantity Fiber glass reinforced * 3
- Rated power / max power (w) 10k/12k
- Rated wind speed (m/s) 11
- Rated rotating speed (rpm) 170
- Working wind speed (m/s) 3-30
- Startup wind speed (m/s) 2
- Survived wind speed (m/s) 60
- Working voltage (v) DC240V(off grid) / DC400V(on grid)AC240
- Battery voltage / capcity (v, ah) 12*20=240V/200Ah
- Speed regulation method Variable pitch regulation + electromagnet brake
- Stop method Mechnical brake, aerodynamic brake
- Generator type Three phase, permanent magnet
- Gear box No, direct drive
- Wind turbine weight (kg) 450
- Tower height / weight (m/kg) 12/1200
- Max horizontal force (N) 22670
- Wind turbine dimension D*L (m) 7.6*6.1
- Noise level (dB) <65
- Packaging info for transportation 5PKGS,1875kg, 7.61CBM
- Variable pitch, centrifugal mechanism
- ABS system
- Low start upwind speed
- Optimum aerodynamic shape design: high efficiency, low noise.
- Mechanical design, safe and reliable
- Precise control: Upper limit of RPM is controlled within 10rpm, precise management
- Multiple protection for key components, precise machining
- Micro grid power system,
- On grid system,
- Isolated system,
- off grid system,
- Wind and solar hybrid system,
- GSM base station,
- Telecom station,
- Island and sight lighting system and so on.
