Nanjing CUH Science & Technology Co., Ltd

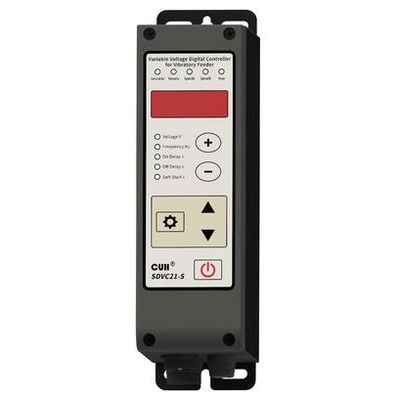

CUH - Model SDVC21-S (5A) - Variable Voltage Digital Controller for Vibratory Feeder
Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation. Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when power on to avoid sudden shake. Soft start time can be digitally preset.
Most popular related searches
voltage control
voltage controller
digital voltage regulator
automatic voltage regulator
voltage regulation
voltage regulating
voltage regulator
voltage fluctuation
overvoltage protection
low voltage power
- Preset Speeds: 4 feed speeds can be preset, stored and outputted by connecting external short-circuit signals.
- Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLCs can be connected to turn on/ off the controller.
- Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
- Remote Speeed Control: output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal.
- DC Control Orutput: The controller can output low voltage DC power associated with ON/OFF Control of the canroller to drive a solenoid or other external devices.
- Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself.
- Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load.
- Overvoltage Protection: If input voltage is too high, power supply of the controller will be shutdown automatically to prote itself.
- Fuse-Short Circuit Protection: If output of the controller is short-circuited, the fuse inside will be blown to protect the controller and the load.
- Max Adidjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high voltage.
- Dimensions:190*53.6*94.5(L*W*H,mm)
- Weight:430g(without accessory)
