VARIOspeed - Model N1 -Enclosure Control Panel
FromSJE-Rhombus

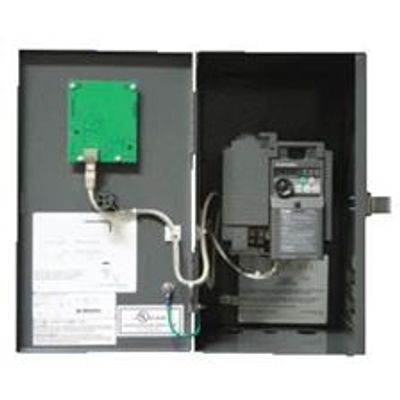

The VARIOspeed N1 control panel controls a three phase pump in constant pressure control applications. The VARIOspeed N1 control panel is designed to control a three phase pump in constant pressure control applications, including booster pump, deep well submersible pump, and irrigation pump applications. It features a variable frequency drive and display in a NEMA 1 enclosure. As flow and head conditions change in the pumping systems, the VFD is able to automatically control the pump speed and maintain a constant discharge pressure. The desired set pressure is entered on the display inside the control panel. The pressure transducer measures the pump discharge pressure.
Most popular related searches
ENCLOSURE:
- Up to 5HP: 14 x 8 x 8 inches (35.56 x 20.32 x 20.32 cm) steel NEMA 1 for indoor use with locking latch
- Above 5HP: 18 x 10 x 10 inches (45.72 x 25.40 x 25.40 cm) steel NEMA 1 for indoor use with locking latch.
NOTE: Voltage and amp range selected may change component layout in enclosure.
- Available HP Range
- (208V – 240V) 1.5HP – 20 HP
- (480V) 7.5 HP – 20 HP
- PID control
- Adjustable electronic overload
- Auto Start on pressure drop (adjustable)
- Auto Stop on low Hz (No-Flow – sleep mode)
- 0-200 PSI (included) 1/4″ NPT Male, NEMA 4X rated with 20 ft. cable
- Operating temperature: 14°F to 104°F (-10°C to 40°C)
- Storage temperature: -4°F to 131°F (-20°C to 55°C)
- Altitude: Maximum of 3,280 ft. (1000m) above sea level
