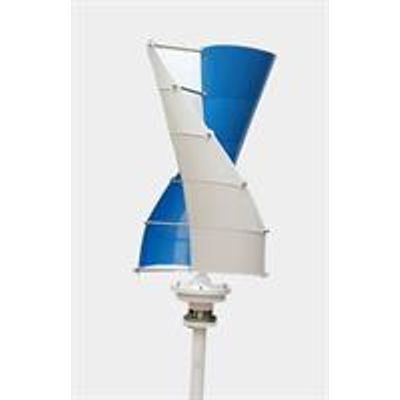

RexCo - Model RC-100SV - Vertical Wind Turbine
VAWTs are better able to harvest turbulent air flow found around buildings and other structures. VAWTs are ideal for both rural and urban applications, including rooftop installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output. Simple to install and maintain.
-
Most popular related searches
Specifications
- Model 100W
- Peak Output 110W
- Rated Voltage 12V AC
- Start-up Wind Speed 2.5 m/s
- Cut-in Wind Speed 3.5m/s
- Cut-in Wind Speed 12m/s
- Survival Max. wind 45m/s
- Number of Blades 10
- Rotor Diameter 0.47m
- Blade Material Casting aluminum alloy
- Generator Type 3-phase Maglev with high performance Neodymium Magnets
- Generator case Casting aluminum alloy
- Controller Type PWM
- Net Weight 14kg
- Tower Connector Flange
- Flange Size * DN25
- Tower Type * Guy Cable Tower
- Tower Size * 3mX2, 76*4mm
- Working Temp. range from -40°C to 60°C
- Product Life 15 years
- Warranty 1 years
- Applications VAWT, vertical axis wind turbine system for streetlight, home, etc
- Measurement 103*51*51cm
- Gross Weight 17kg
