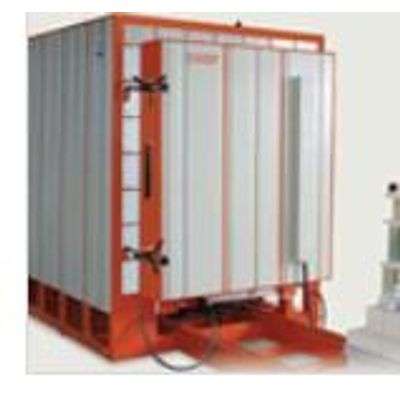

Vest - Model CEK/TRK -Chamber Kilns with Truck
Operating Temperature : 1100°C / 1280°C. Temperature Control : With available programming devices of Bentrup / Pixsys. Switching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional).
Most popular related searches
solid state relay
refractory brick
thermal insulation
electrical heating
kiln operation
kiln operator
electrical heat
insulating brick
wall heating
kiln chamber
TEMPERATURE PROGRAMMERS
Advanced Temperature Programming Devices of either BENTRUP or PIXSYS can be supplied.
KILN FURNITURE
Kiln furniture set can be supplied as an optional extra.
- Thermocouple : Type K (NiCr-Ni) in 1100°C / Type S (PtRh-Pt) in 1280°C
- Overtemperature Protection : Standard
- Thermal Insulation : Light refractory bricks and/or Ceramic fiber
- Heating Surface : Side walls + Truck + Door
- Heating Elements : Spiral wound elements to be recessed into slots that are cut into the brick wall
- Cooling : Natural cooling by exhaust/cooling damper Automatic exhaust/cooling damper in conjunction with programming device is optional
- Door Opening : Manual
- Truck Movement : Manual by man power
- Motor driven truck movement is optional Safety : A switch de-energizes heating elements when the door is open
- Body Construction : Welded steel structure
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) Other colors on request.
- Connection : Three Phase + Neutral + Earth
