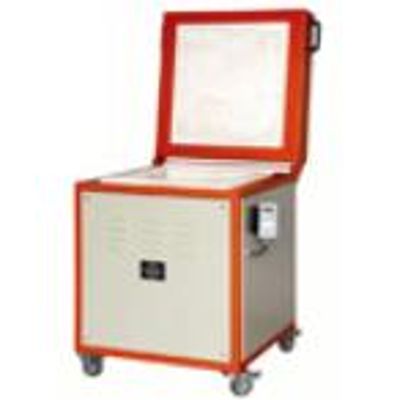

Vesta - Model CEK/STL -Top Loading Kilns
Operating Temperature : 1100°C / 1280°C. Temperature Control : With any programmer having HAN7Da multipolar socket. Switching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional). Thermocouple : Type K (NiCr-Ni) in 1100°C / Type S (PtRh-Pt) in 1280°C.
Most popular related searches
solid state relay
refractory brick
thermal insulation
wall heating
electrical heating
kiln operation
kiln operator
electrical heat
insulating brick
TEMPERATURE PROGRAMMERS
Compact plug-in Temperature Programming Devices of either BENTRUP or PIXSYS can be supplied.
KILN FURNITURE
Kiln furniture set can be supplied as an optional extra.
- Thermal Insulation : Light refractory bricks
- Heating Surface : Side walls
- Heating Elements : Spiral wound elements to be recessed into slots that are cut into the brick wall
- Cooling : Natural cooling by removing vent cooling plugs
- Lid Opening : Manual
- Safety : A switch de-energizes heating elements when the lid is open
- Body Construction : Welded steel structure
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) - Other colors on request.
- Connection : Single Phase + Neutral + Earth
- All the models are fitted with CE Plug and cable.
- Castor wheels at four corners.
